Home - Products - Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) - F10-10003045R
Product Images

F10-10003045R

FLECTO 0.5mm Pitch Female 30 way Signal (6.40mm)

Download Datasheet Request Sample
In-Stock: 150
Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 550		 Quantity Unit Price Ext Price Packaging
5500 $1.54 $8470 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeFlecto
Pitch0.50mm (0.020")
GenderFemale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts30
Current Rating0.4A max per contact
Environmental Ratings-40°C to +105°C
Termination FinishGold
Housing MaterialLCP
Flammability RatingUL94V-0
Weight0.501g
Dimensions13.90 x 6.20 x 6.85
Above Board Height6.40mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

F10-10103045R

 View Details

Documents & Media

Product Datasheet

Product Datasheet

Download

Related Products

Following products can be suitable for the assortments.

M58-2500342R

View Details

F10-10010045R

View Details

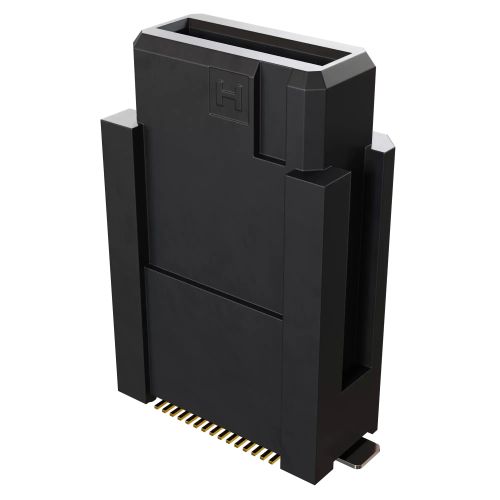

F10-10203045R

View Details

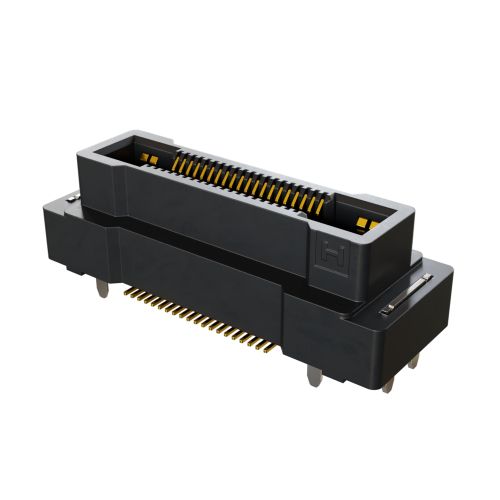

F11-10004042R

View Details
