F10-10208045R

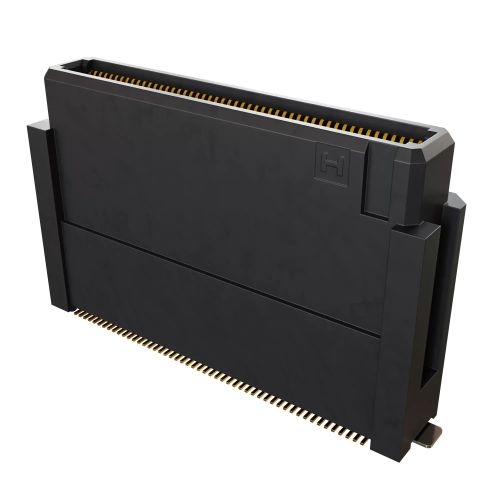

FLECTO 0.5mm Pitch Female 80 way Signal (18.40mm)

Download Datasheet Request Sample

In-Stock: 40 Factory Lead Time (wks): TBA All prices are in USD SPQ: 150	Quantity	Unit Price	Ext Price	Packaging
	5100	$2.918	$14881.8	Tape and Reel

Product Attributes

ManufacturerHarwin

PackageTape and Reel

Product FamilyBBi

Product StatusActive

RangeFlecto

Pitch0.50mm (0.020")

GenderFemale

OrientationVertical

Connection TypeSurface Mount (SMT)

Number Of Rows2

Number Of Contacts80

Current Rating0.4A max per contact

Environmental Ratings-40°C to +105°C

Termination FinishGold

Housing MaterialLCP

Flammability RatingUL94V-0

Weight2.5g

Dimensions26.85 x 6.20 x 18.85

Above Board Height18.40mm

End StackableNo

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required
