F11-20010042R

FLECTO 0.5mm Pitch Male 100 way Signal+Power (13.20mm)

Download Datasheet Request Sample
In-Stock: 40
Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 150		 Quantity Unit Price Ext Price Packaging
5100 $3.284 $16748.4 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeFlecto
Pitch0.50mm (0.020")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT) & PC Tail / Throughboard
Number Of Rows2
Number Of Contacts100
Current RatingSignal = 0.5A max per contact; Power = 3A max per contact
Environmental Ratings-55°C to +105°C
Termination FinishGold (signal), 100% Tin over Nickel (power)
Housing MaterialLCP
Flammability RatingUL94V-0
Weight1.916g
Dimensions38.70 x 8.90 x 14.55
Above Board Height13.20mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

F11-10010042R

 View Details
Image 1 Image 1

F11-11110042R

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

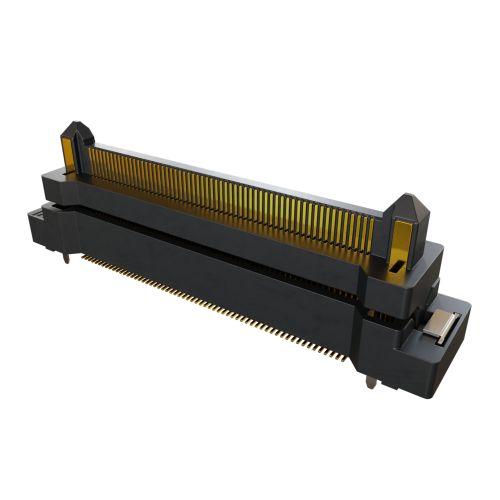

F11-20012042R

 View Details
