G125-224269600

Gecko-SL DIL Female Crimp Connector Housing, no fixings (for use with metal backshells), 13+13 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
2500 $1.554 $3885 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Number Of Rows2
Number Of Contacts26
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Jackscrew StyleNone fitted
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight0.556g
Dimensions27.70 x 6.50 x 7.60
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-900

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-901

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-902

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

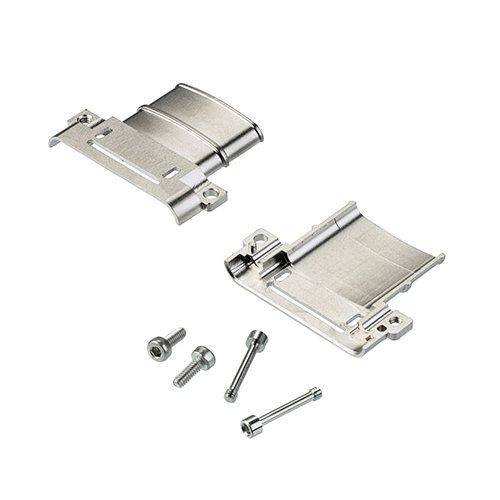

G125-96426F1

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0200005

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0010005

 View Details
Image 1 Image 1

G125-0020005

 View Details
Image 1 Image 1

G125-FW10150F94

 View Details
Image 1 Image 1

G125-FW10150L94

 View Details
Image 1 Image 1

G125-FW10300F94

 View Details
Image 1 Image 1

G125-FW10450L94

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

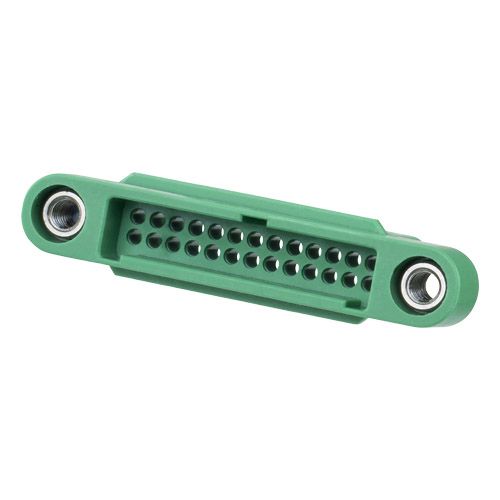

G125-3242696M1

 View Details
Image 1 Image 1

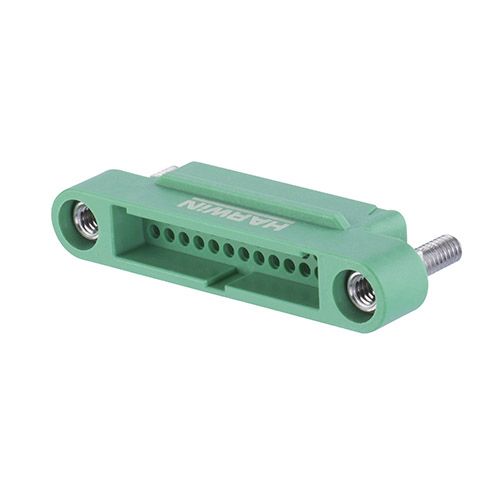

G125-3242696M2

 View Details
Image 1 Image 1

G125-MC12605M1-0150F0

 View Details
Image 1 Image 1

G125-MC12605M1-0150F1

 View Details
Image 1 Image 1

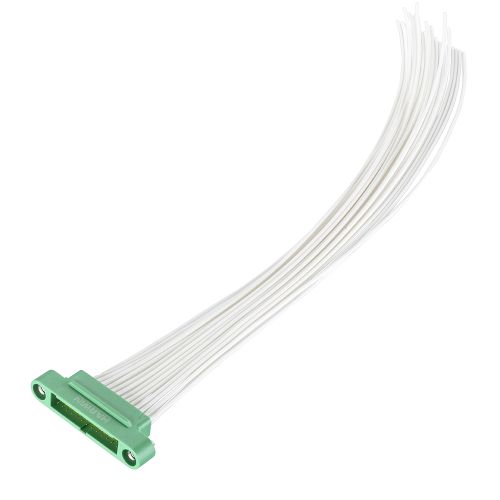

G125-MC12605M1-0150L

 View Details
Image 1 Image 1

G125-MC12605M1-0150M1

 View Details
Image 1 Image 1

G125-MC12605M1-0300F0

 View Details
Image 1 Image 1

G125-MC12605M1-0300F1

 View Details
Image 1 Image 1

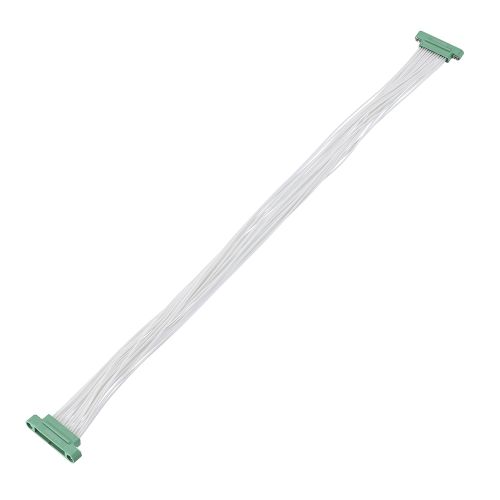

G125-MC12605M1-0300M1

 View Details
Image 1 Image 1

G125-MC12605M1-0450L

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-2242696F1

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

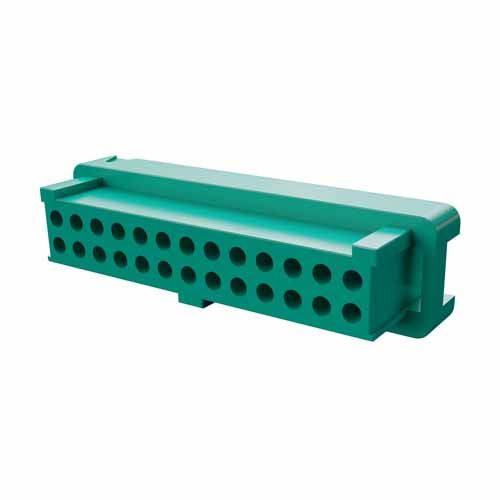

G125-2042696L0
