G125-22496F2-03-08-00

Gecko-MT Female Crimp Connector Housing, with Reverse fix (internally threaded) fixings, 3-power + 8-signal

Download Datasheet Request Sample

Factory Lead Time (wks): 21
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
30 $12.198 $365.94 Bulk/Loose
50 $11.658 $582.9 Bulk/Loose
100 $10.964 $1096.4 Bulk/Loose
250 $10.142 $2535.5 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Number Of RowsMixed
Number Of Contacts8
Current RatingSignal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Jackscrew StyleInternal Thread Screw-Lok (Reverse Fix)
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight0.966g
Dimensions27.30 x 6.50 x 7.60
End StackableNo
Mating Pin SizeØ0.4mm, Ø1mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-900

 View Details
Image 1 Image 1

Z125-903

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-901

 View Details
Image 1 Image 1

Z125-904

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-902

 View Details
Image 1 Image 1

Z125-905

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0200005

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0010005

 View Details
Image 1 Image 1

G125-0020005

 View Details
Image 1 Image 1

G125-0500005

 View Details
Image 1 Image 1

G125-FP10150F94

 View Details
Image 1 Image 1

G125-FP10150L94

 View Details
Image 1 Image 1

G125-FP10450F94

 View Details
Image 1 Image 1

G125-FP10450L94

 View Details
Image 1 Image 1

G125-FW10150F94

 View Details
Image 1 Image 1

G125-FW10150L94

 View Details
Image 1 Image 1

G125-FW10300F94

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-32496M3-03-08-00

 View Details
Image 1 Image 1

G125-MH108M3-03AD000P

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-22496F2-02-08-02

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

G125-22496F2-01-08-01

View Details

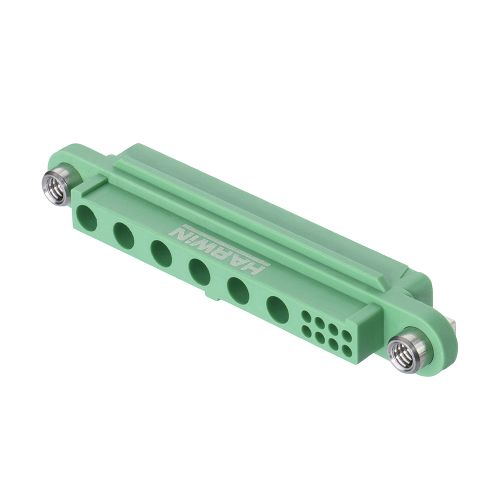

G125-22496F2-06-08-00

View Details

G125-22496F3-03-08-00

View Details

G125-22496F5-03-08-00

View Details
