G125-3041696L4

Gecko DIL Male Crimp Connector Housing, with Latches, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
250 $2.696 $674 Bulk/Loose
500 $2.536 $1268 Bulk/Loose
1000 $2.39 $2390 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Number Of Rows2
Number Of Contacts16
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Latching StyleLocking Latch
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight0.354g
Dimensions13.95 x 4.90 x 6.50
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-900

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-901

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-902

 View Details

Use with Separator Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-9261600

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0200005

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-1010005

 View Details
Image 1 Image 1

G125-1020005

 View Details
Image 1 Image 1

G125-MW10150F94

 View Details
Image 1 Image 1

G125-MW10150L94

 View Details
Image 1 Image 1

G125-MW10150M94

 View Details
Image 1 Image 1

G125-MW10300F94

 View Details
Image 1 Image 1

G125-MW10300M94

 View Details
Image 1 Image 1

G125-MW10450L94

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-2041696L0

 View Details
Image 1 Image 1

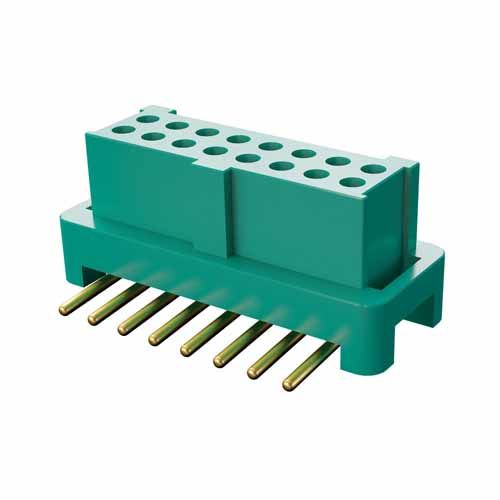

G125-FS11605L0P

 View Details
Image 1 Image 1

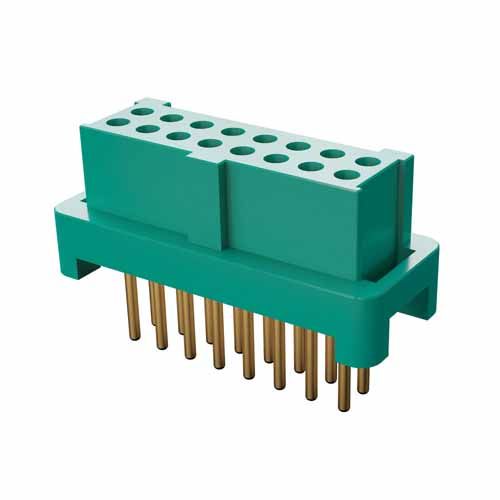

G125-FV11605L0P

 View Details
Image 1 Image 1

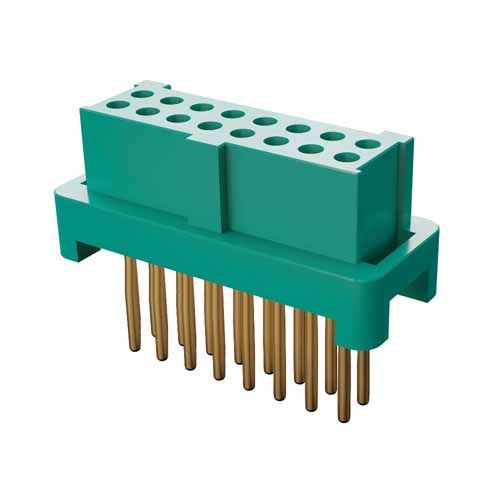

G125-FV21605L0P

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-3041696L0

 View Details
