Product Images

G125-32496M2-01-08-01

Gecko-MT Male Crimp Connector Housing, with 5.2mm front panel mount screw fixings, 1-power + 8-signal + 1-power

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin

PackageBulk/Loose

Product FamilyHRi

Product StatusActive

RangeGecko

Pitch1.25mm (0.049")

GenderMale

OrientationStraight

Connection TypeCable (Crimp)

Number Of RowsMixed

Number Of Contacts8

Current RatingSignal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)

Environmental Ratings-65°C to +150°C

Jackscrew StyleInternal Thread Screw-Lok with Front Panel Mount Stud (Standard Gender)

Housing MaterialPolyamide (Nylon) 4T

Flammability RatingUL94V-0

Weight1.116g

Dimensions21.50 x 6.50 x 10.15

End StackableNo

Mating Pin SizeØ0.4mm, Ø1mm

Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Z125-900

View Details

Z125-903

View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Z125-901

View Details

Z125-904

View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Z125-902

View Details

Z125-905

View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

G125-9601602

View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

G125-0200005

View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

G125-4510000B

View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

G125-0010005

View Details

G125-0020005

View Details

G125-0500005

View Details

G125-FP10150F94

View Details

G125-FP10150L94

View Details

G125-FP10450F94

View Details

G125-FP10450L94

View Details

G125-FW10150F94

View Details

G125-FW10150L94

View Details

G125-FW10300F94

View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

G125-2249600-01-08-01

View Details

G125-22496F1-01-08-01

View Details

G125-FC108F1-1B1B-XXXXF1

View Details

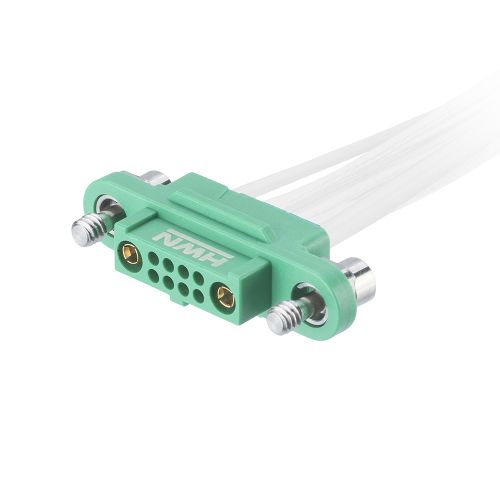

G125-FC108F1-1B1B-XXXXL

View Details

G125-FC208F1-1B1B-XXXXF1

View Details

G125-FC208F1-1B1B-XXXXL

View Details

G125-FV10805F1-1AB1ABP

View Details

G125-MC108M1-1D1D-XXXXF1

View Details

G125-MC108M3-1D1D-XXXXF1

View Details

G125-MC208M1-1D1D-XXXXF1

View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

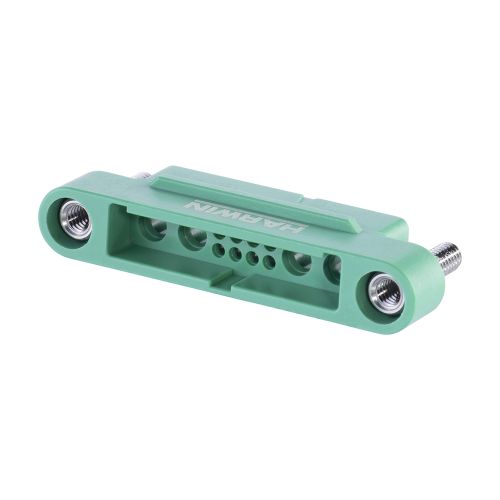

G125-32496M2-02-08-02

View Details

Documents & Media

Component Spec

Component Spec

Download

Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download

Web Address

Web Address

Download

FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

G125-32496M1-01-08-01

View Details

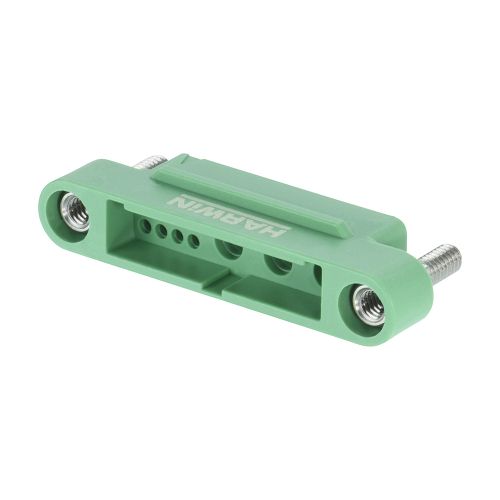

G125-32496M2-03-08-00
