G125-32496M3-02-04-00

Gecko-MT Male Crimp Connector Housing, with Reverse Fix floating hex-socket head fixings, 2-power + 4-signal

Download Datasheet Request Sample

Factory Lead Time (wks): 21
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
50 $8.387 $419.35 Bulk/Loose
100 $7.887 $788.7 Bulk/Loose
250 $7.272 $1818 Bulk/Loose
500 $7.074 $3537 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Number Of RowsMixed
Number Of Contacts4
Current RatingSignal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Jackscrew StyleFloating Screw-Lok with Hex Socket Head (Reverse Fix)
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight1.07g
Dimensions21.05 x 6.50 x 8.40
End StackableNo
Mating Pin SizeØ0.4mm, Ø1mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-900

 View Details
Image 1 Image 1

Z125-903

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-901

 View Details
Image 1 Image 1

Z125-904

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-902

 View Details
Image 1 Image 1

Z125-905

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9950-00

 View Details
Image 1 Image 1

Z9952-00

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0200005

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-FP10150F94

 View Details
Image 1 Image 1

G125-FP10150L94

 View Details
Image 1 Image 1

G125-FP10450F94

 View Details
Image 1 Image 1

G125-FP10450L94

 View Details
Image 1 Image 1

G125-FW10150F94

 View Details
Image 1 Image 1

G125-FW10150L94

 View Details
Image 1 Image 1

G125-FW10300F94

 View Details
Image 1 Image 1

G125-FW10450L94

 View Details
Image 1 Image 1

G125-0010005

 View Details
Image 1 Image 1

G125-0020005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

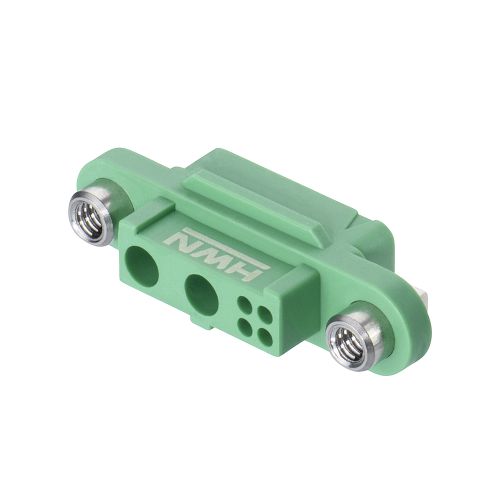

G125-22496F2-02-04-00
