G125-FC10669F1-XXXXF1

Gecko-SL Shielded Cable Assembly, Female-to-Female, with floating hex socket head fixings and backshells, 26 AWG cable, variable length (XXXXmm long), 3+3 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderFemale
OrientationStraight
Connection TypeCable Assembly
Wire Size26 AWG
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Jackscrew StyleFloating Screw-Lok with Hex Socket Head (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
DimensionsXXXX x 17.40 x 7.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-902

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9950-00

 View Details
Image 1 Image 1

Z9952-00

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0010005

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0200005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-3240696M1

 View Details
Image 1 Image 1

G125-3240696M2

 View Details
Image 1 Image 1

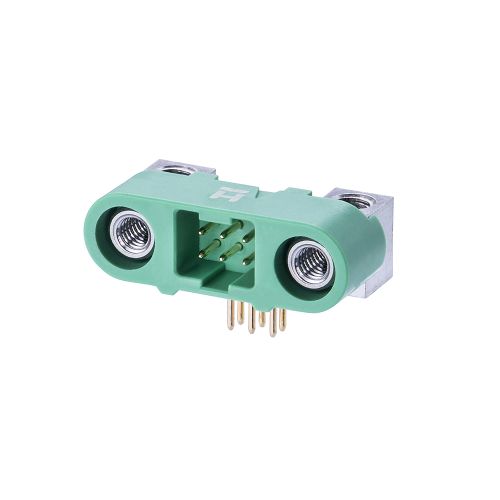

G125-MH10605M4P

 View Details
Image 1 Image 1

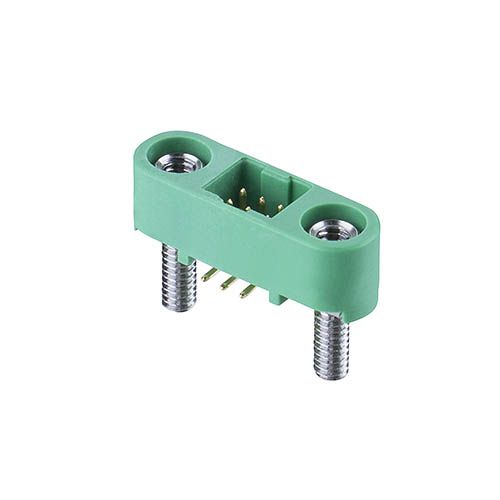

G125-MS10605M2P

 View Details
Image 1 Image 1

G125-MV10605M2P

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-FC20669F1-XXXXF1

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

G125-224069600

View Details

G125-2240696F1

View Details

G125-96406F1

View Details

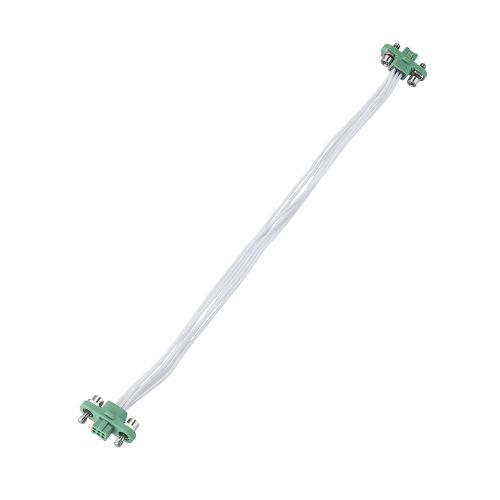

G125-FC10605F1-0150F1
