G125-FC22005F0-0450L

Gecko-SL Cable Assembly, Female Single-Ended, no screw fixings, white 28 AWG cable, 450mm long, 10+10 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderFemale
OrientationStraight
Connection TypeCable Assembly
Wire Size28 AWG
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Jackscrew StyleNone fitted
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight14.777g
Dimensions450.00 x 23.95 x 6.50

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-902

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-96420F1

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0020005

 View Details
Image 1 Image 1

G125-FW20450L94

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0200005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-3242096M1

 View Details
Image 1 Image 1

G125-3242096M2

 View Details
Image 1 Image 1

G125-MH12005M4P

 View Details
Image 1 Image 1

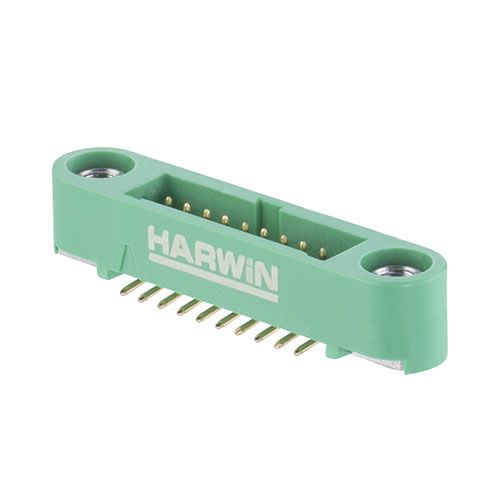

G125-MS12005M1P

 View Details
Image 1 Image 1

G125-MS12005M2P

 View Details
Image 1 Image 1

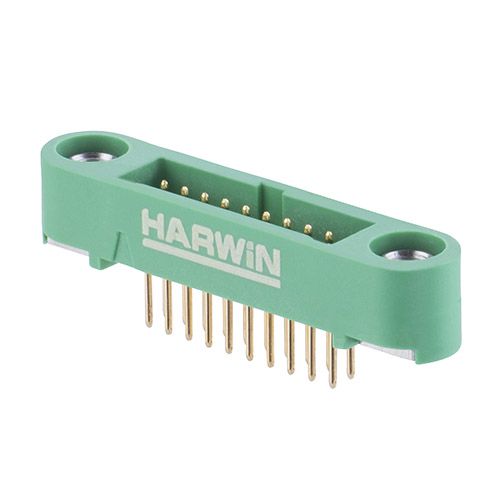

G125-MV12005M1P

 View Details
Image 1 Image 1

G125-MV12005M2P

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-FC12005F0-0450L

 View Details
