G125-FV10605F3P

Gecko-SL DIL Female Vertical Throughboard Connector, Reverse fix with 5mm board mount studs, gold, pick & place (cut tape packing), 3+3 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 24
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
100 $13.159 $1315.9 Tape and Reel Strip
500 $12.382 $6191 Tape and Reel Strip

Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts6
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Screw-Lok with Board Mount Stud (Reverse Fix)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight0.914g
Dimensions15.20 x 4.90 x 10.25
Above Board Height5.25mm
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-9600602

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-4500000B

 View Details
Image 1 Image 1

G125-4510000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-3240696M3

 View Details
Image 1 Image 1

G125-MH10605M3P

 View Details
Image 1 Image 1

G125-MS10605M3P

 View Details
Image 1 Image 1

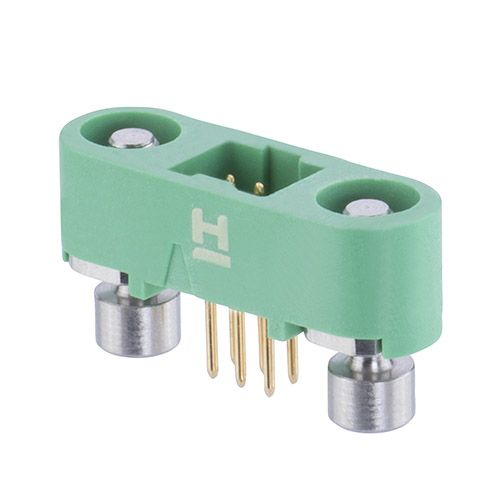

G125-MV10605M3P

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-FV10605F3R

 View Details
