G125-FV10805F3-1AB1ABP

Gecko-MT Female Vertical Throughboard Connector, Reverse fix with 5mm board mount studs, gold, pick & place (cut tape packing), 1-power + 8-signal + 1-power

Download Datasheet Request Sample

Factory Lead Time (wks): 24
All prices are in USD
SPQ: 10
Quantity Unit Price Ext Price Packaging
10 $47.83 $478.3 Tape and Reel Strip
100 $40.628 $4062.8 Tape and Reel Strip


Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of RowsMixed
Number Of Contacts8
Current RatingSignal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Screw-Lok with Board Mount Stud (Reverse Fix)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight1.265g
Dimensions21.50 x 4.90 x 10.25
Above Board Height5.25mm
End StackableNo
Mating Pin SizeØ0.4mm, Ø1mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hoods

Articles from this product series can be use in the following assortments:

Use with Accessory

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

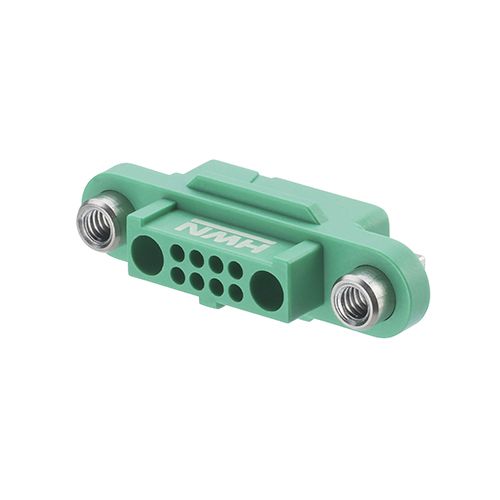

G125-22496F2-01-08-01

View Details

G125-22496F5-01-08-01

View Details

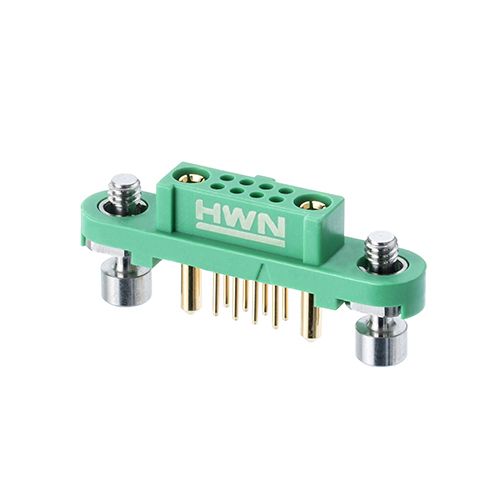

G125-FV10805F1-1AB1ABP

View Details

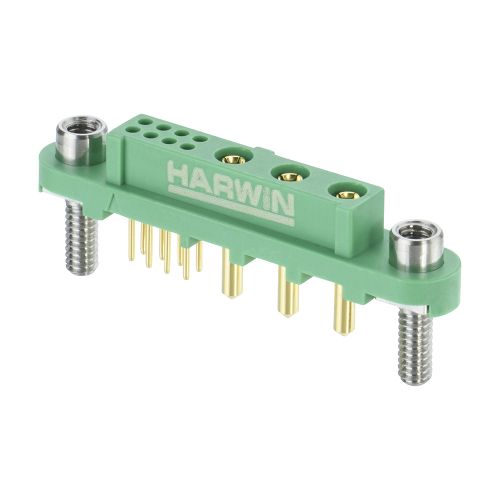

G125-FV108F3-03AB000P
