G125-MC11205M1-0300M1

Gecko-SL Cable Assembly, Male-to-Male, with internally threaded screw fixings, white 26 AWG cable, 300mm long, 6+6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
100 $110.301 $11030.1 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationStraight
Connection TypeCable Assembly
Wire Size26 AWG
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Jackscrew StyleInternal Thread Screw-Lok (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight8.571g
Dimensions300.00 x 18.95 x 6.50

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-902

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-9641200

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-1010005

 View Details
Image 1 Image 1

G125-MW10300M94

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0200005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-224129600

 View Details
Image 1 Image 1

G125-2241296F1

 View Details
Image 1 Image 1

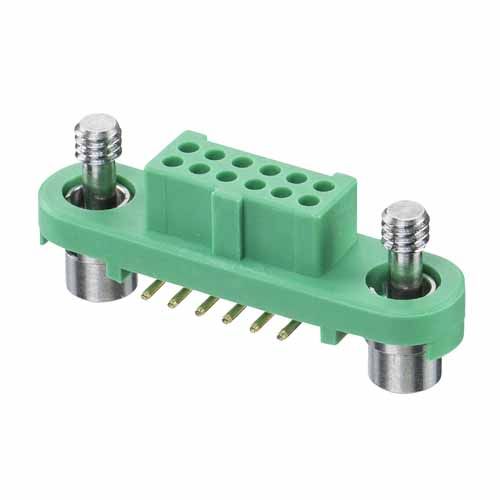

G125-FS11205F1P

 View Details
Image 1 Image 1

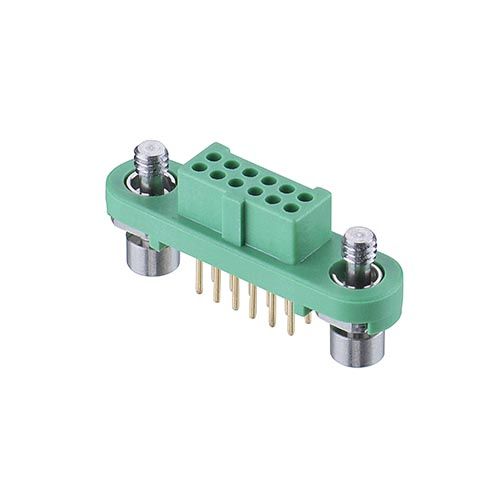

G125-FV11205F1P
