G125-MC13405M1-0150L

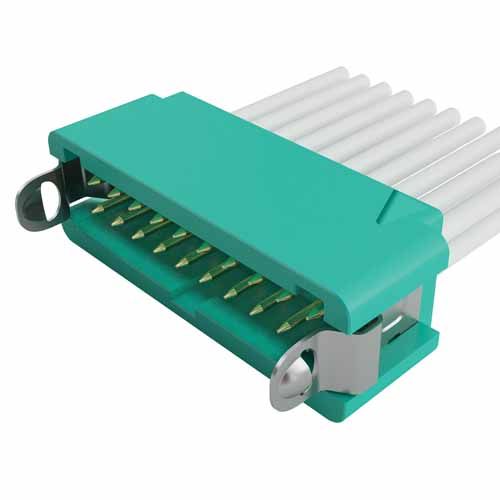

Gecko-SL Cable Assembly, Male Single-Ended, with internally threaded screw fixings, white 26 AWG cable, 150mm long, 17+17 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
10 $80.996 $809.96 Bulk/Loose
30 $73.485 $2204.55 Bulk/Loose
50 $72.278 $3613.9 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationStraight
Connection TypeCable Assembly
Wire Size26 AWG
Number Of Rows2
Number Of Contacts34
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Jackscrew StyleInternal Thread Screw-Lok (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight11.651g
Dimensions150.00 x 32.70 x 6.50
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingCable Assembly

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c
