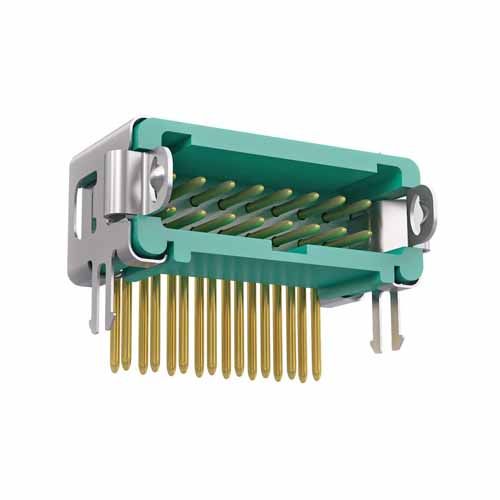

G125-MH11605M4P

Gecko-SL DIL Male Horizontal Throughboard Connector, internally threaded screw fixings with board mount capability, gold, pick & place (cut tape packing), 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 10
Quantity Unit Price Ext Price Packaging
100 $15.523 $1552.3 Tape and Reel Strip
500 $14.834 $7417 Tape and Reel Strip


Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts16
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Screw-Lok with Board Mount (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight1.49g
Dimensions21.45 x 7.70 x 8.50
Above Board Height5.30mm
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required
