G125-MH13405M3P

Gecko-SL DIL Male Horizontal Throughboard Connector, Reverse Fix floating hex socket head fixings, gold, pick & place (cut tape packing), 17+17 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
20 $23.663 $473.26 Tape and Reel Strip

Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts34
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleFloating Screw-Lok with Hex Socket Head (Reverse Fix)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight1.537g
Dimensions32.70 x 5.90 x 8.50
Above Board Height5.30mm
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-2243496F2

 View Details
Image 1 Image 1

G125-2243496F3

 View Details
Image 1 Image 1

G125-2243496F5

 View Details
Image 1 Image 1

G125-FS13405F2P

 View Details
Image 1 Image 1

G125-FS13405F3P

 View Details
Image 1 Image 1

G125-FV13405F2P

 View Details
Image 1 Image 1

G125-FV13405F3P

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-MH13405M3R

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

G125-3243496M3

View Details

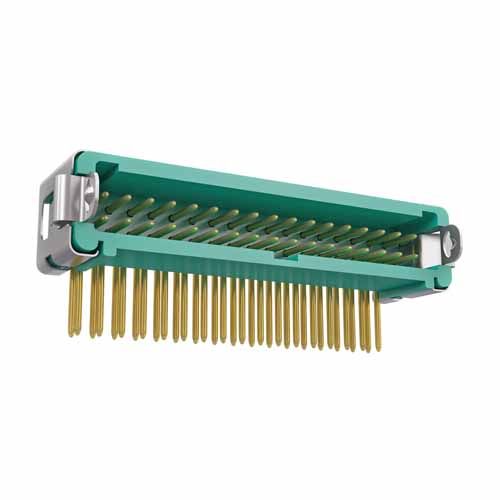

G125-MH13405L3P

View Details

G125-MH13405M4P

View Details

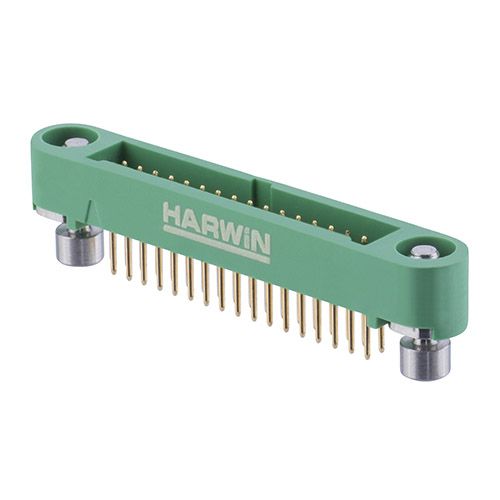

G125-MV13405M3P
