G125-MH22605L2P

Gecko DIL Male Horizontal 4.8mm Throughboard Connector, Latches for 2.4mm thick PCB, gold, pick & place (cut tape packing), 13+13 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleLocking Latch
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight0.991g
Dimensions20.20 x 8.00 x 10.20

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Separator Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-9262600

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-2042696L0

 View Details
Image 1 Image 1

G125-FC12605L0-0150F

 View Details
Image 1 Image 1

G125-FC12605L0-0150L

 View Details
Image 1 Image 1

G125-FC22605L0-0150F

 View Details
Image 1 Image 1

G125-FC22605L0-0150L

 View Details
Image 1 Image 1

G125-FS12605L0P

 View Details
Image 1 Image 1

G125-FV12605L0P

 View Details
Image 1 Image 1

G125-FV22605L0P

 View Details
Image 1 Image 1

G125-MC12605L4-0150F

 View Details
Image 1 Image 1

G125-FC32605L0-0150F

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-MH22605L2R

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

G125-MH12605L1P

View Details

G125-MS12605L2P

View Details

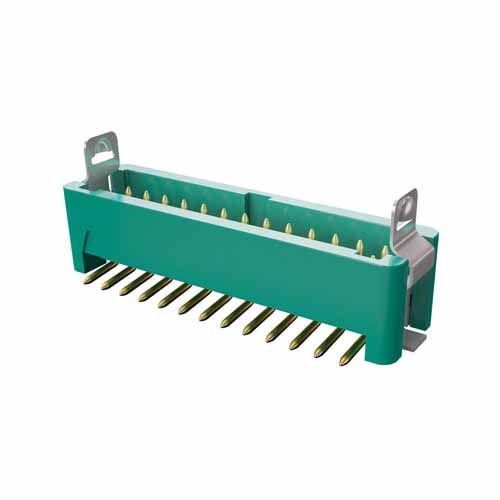

G125-MS12605L3P

View Details

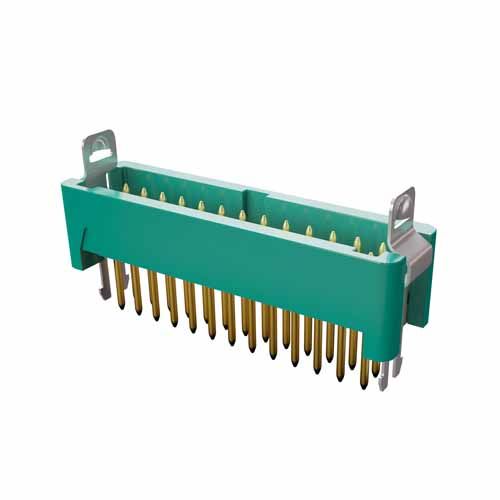

G125-MV12605L1P

View Details
