G125-MS10605M2P

Gecko-SL DIL Male Vertical Surface Mount Connector, screw fixings with 5mm board mount studs, gold, pick & place (cut tape packing), 3+3 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 29
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
100 $9.312 $931.2 Tape and Reel Strip
500 $8.483 $4241.5 Tape and Reel Strip

Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts6
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Screw-Lok with Board Mount Stud (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight0.938g
Dimensions15.20 x 5.80 x 9.90
Above Board Height4.98mm
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-4500000B

 View Details
Image 1 Image 1

G125-4510000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-224069600

 View Details
Image 1 Image 1

G125-2240696F1

 View Details
Image 1 Image 1

G125-FC10605F0-0150F0

 View Details
Image 1 Image 1

G125-FC10605F0-0150L

 View Details
Image 1 Image 1

G125-FC10605F0-0300F0

 View Details
Image 1 Image 1

G125-FC10605F0-0450L

 View Details
Image 1 Image 1

G125-FC10605F1-0150F1

 View Details
Image 1 Image 1

G125-FC10605F1-0150L

 View Details
Image 1 Image 1

G125-FC10605F1-0300F1

 View Details
Image 1 Image 1

G125-FC10605F1-0450L

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-MS10605M2R

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

G125-3240696M1

View Details

G125-MS10605L1P

View Details

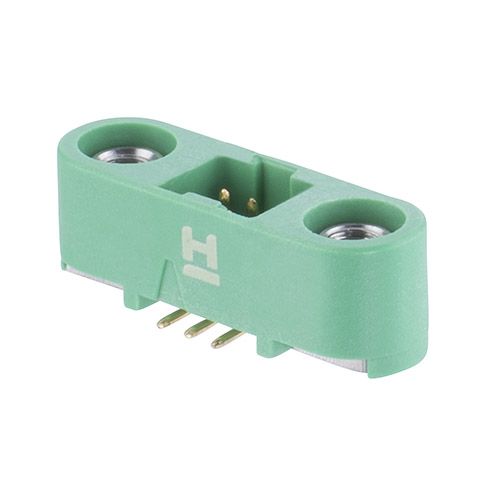

G125-MS10605M1P

View Details

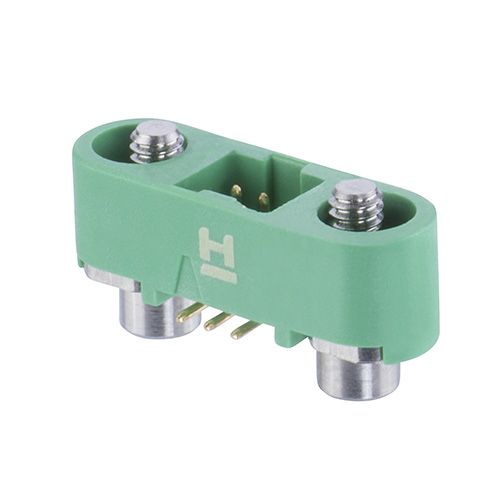

G125-MS10605M3P
