G125-MV10605M1P

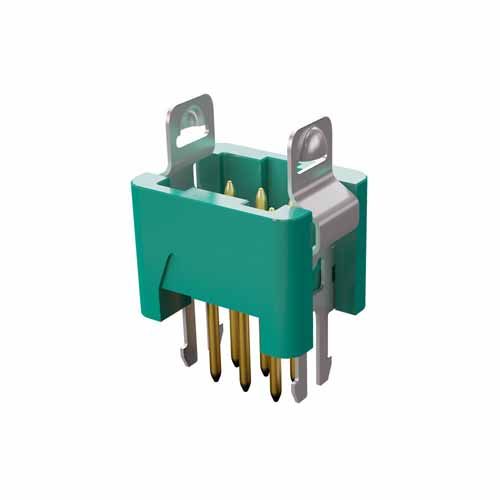

Gecko-SL DIL Male Vertical Throughboard Connector, internally threaded screw fixings, gold, pick & place (cut tape packing), 3+3 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 24
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
100 $8.352 $835.2 Tape and Reel Strip
500 $7.532 $3766 Tape and Reel Strip

Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts6
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Screw-Lok (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight0.75g
Dimensions15.20 x 4.90 x 7.90
Above Board Height4.90mm
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required
