Product Images

G125-MV13405M2P

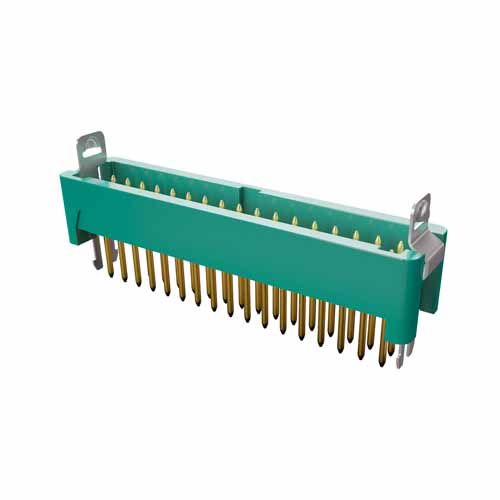

Gecko-SL DIL Male Vertical Throughboard Connector, screw fixings with 5mm board mount studs, gold, pick & place (cut tape packing), 17+17 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 19
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
100 $10.118 $1011.8 Tape and Reel Strip
500 $9.28 $4640 Tape and Reel Strip
1000 $9.19 $9190 Tape and Reel Strip

Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts34
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Screw-Lok with Board Mount Stud (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight1.438g
Dimensions32.70 x 4.90 x 9.90
Above Board Height4.90mm
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-9603402

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

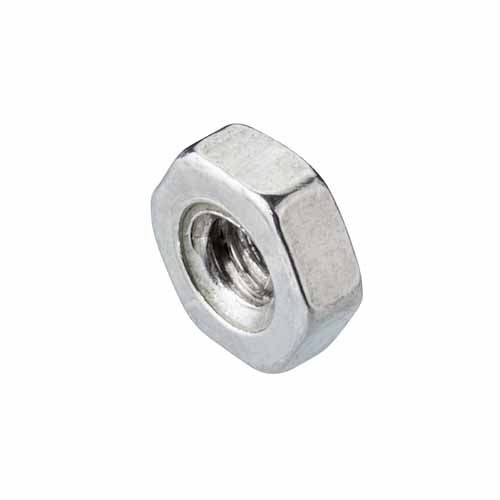

G125-4500000B

 View Details
Image 1 Image 1

G125-4510000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-224349600

 View Details
Image 1 Image 1

G125-2243496F1

 View Details
Image 1 Image 1

G125-FC13405F0-0150F0

 View Details
Image 1 Image 1

G125-FC13405F0-0150L

 View Details
Image 1 Image 1

G125-FC13405F0-0300F0

 View Details
Image 1 Image 1

G125-FC13405F0-0450L

 View Details
Image 1 Image 1

G125-FC13405F1-0150F1

 View Details
Image 1 Image 1

G125-FC13405F1-0150L

 View Details
Image 1 Image 1

G125-FC13405F1-0300F1

 View Details
Image 1 Image 1

G125-FC13405F1-0450L

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-MV13405M2R

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download
