H2106A01

Ø0.80mm Terminal Pin, for 2.4mm panel thickness

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 1000		 Quantity Unit Price Ext Price Packaging
10000 $0.167 $1670 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyEZi
Product StatusActive
RangeHARDWARE
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Weight0.07g
Dimensions7.33 x Ø2.39
Above Board Height4.47mm
Mating Pin SizeØ0.8mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Punch And Die Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z2106A00

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

H8501-46

 View Details
Image 1 Image 1

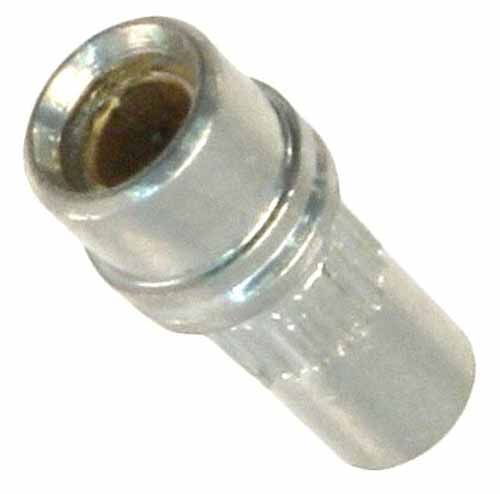

H8502-01

 View Details
Image 1 Image 1

H8504-46

 View Details
Image 1 Image 1

H8505-01

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

H2105A01

 View Details
