Home - Products - Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings - KA1-2010298F1
Product Images

KA1-2010298F1

Kona (8.5mm pitch) Hi-Rel SIL Female Cable Housing, Thumbscrews with Hex Socket, 2 power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
100 $10.609 $1060.9 Bulk/Loose
250 $9.783 $2445.75 Bulk/Loose
1000 $9.78 $9780 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeKona
Pitch8.50mm (0.335")
GenderFemale
OrientationStraight
Connection TypeCable (Solder)
Number Of Rows1
Number Of Contacts2
Current Rating60A max per contact
Environmental Ratings-65°C to +150°C
Jackscrew StyleFloating Thumbscrew with Hex Socket Head (Standard Gender)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight6.23g
Dimensions33.00 x 12.50 x 22.20
End StackableNo
Pcb MountingCable (Solder)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

ZA1-9040000

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

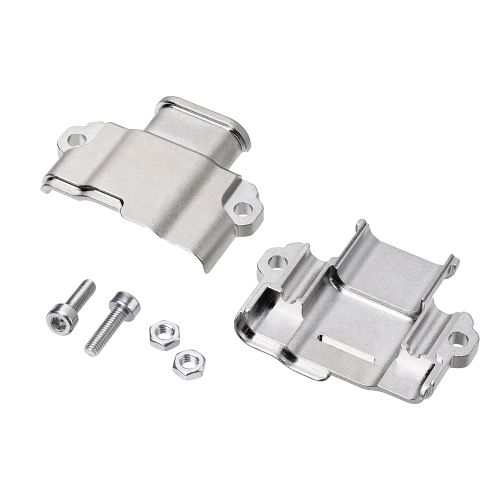

Use with Hoods
