KA1-3010398M5

Kona (8.5mm pitch) Hi-Rel SIL Male Cable Housing, Reverse fix thumbscrews with Hex Socket, 3 power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 23
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
25 $12.172 $304.3 Bulk/Loose
50 $11.447 $572.35 Bulk/Loose
100 $10.765 $1076.5 Bulk/Loose
250 $9.94 $2485 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeKona
Pitch8.50mm (0.335")
GenderMale
OrientationStraight
Connection TypeCable (Solder)
Number Of Rows1
Number Of Contacts3
Current Rating60A max per contact
Environmental Ratings-65°C to +150°C
Jackscrew StyleFloating Thumbscrew with Hex Socket Head (Reverse Fix)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight8.41g
Dimensions41.50 x 12.50 x 22.20
End StackableNo
Pcb MountingCable (Solder)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

ZA1-9040000

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

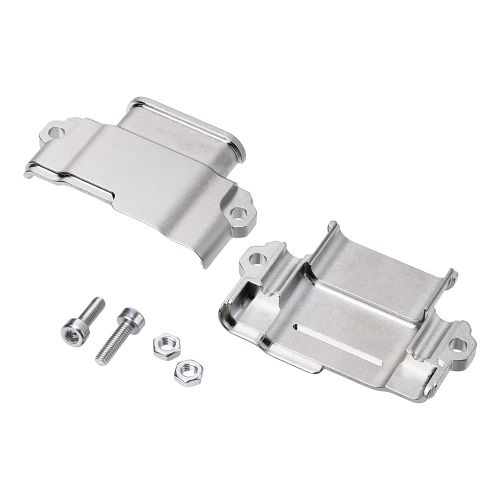

KA1-9700300

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

KA1-1410005

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

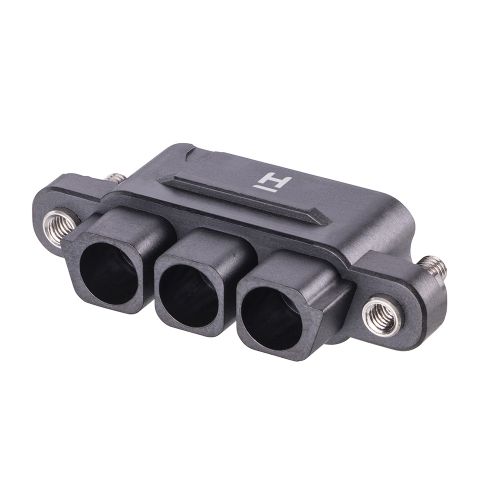

KA1-2010398F2

 View Details
Image 1 Image 1

KA1-FSV2-3-XXXXALXX

 View Details
Image 1 Image 1

KA1-FSVA2-3-XXXXA-FVA2

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

KA1-2010398F1

 View Details
