KA1-9500302

Kona Metal Backshell for 3 contact connectors, for use in front panel mount with cable connectors, or board mount with throughboard connectors

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1
Quantity Unit Price Ext Price Packaging
10 $62.507 $625.07 Bulk/Loose
25 $57.633 $1440.825 Bulk/Loose
50 $54.442 $2722.1 Bulk/Loose


Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeKona
Pitch8.50mm (0.335")
OrientationVertical
Connection TypeFront Panel Mount or Board Mount
Number Of Rows1
Number Of Contacts3
Environmental Ratings-65°C to +150°C
Housing MaterialAluminium Alloy
Weight4.111g
Dimensions46.00 x 15.00 x 9.50
End StackableNo
Pcb MountingFront Panel Mount or Board Mount

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Use with Housings

Articles from this product series can be use in the following assortments:

Use with Mating Products

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

KA1-2010398F2

View Details

KA1-3010398M1

View Details

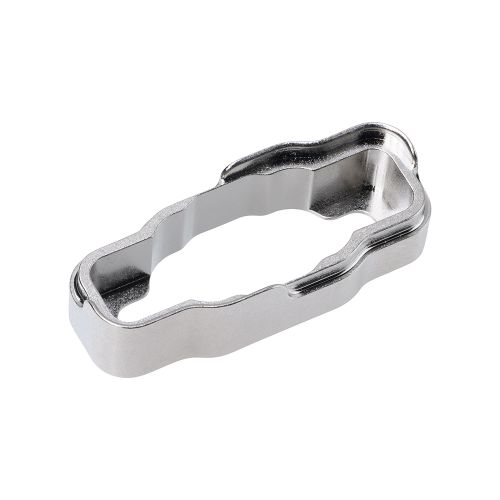

KA1-9500202
