KA1-MV10405M2

Kona (8.5mm pitch) Hi-Rel SIL Male Vertical 4.5mm Throughboard Connector, Reverse fix Floating Hex Socket Screws, 4 power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
10 $37.269 $372.69 Tube
100 $37.26 $3726 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeKona
Pitch8.50mm (0.335")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows1
Number Of Contacts4
Current Rating60A max per contact
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleFloating Screw-Lock with Hex Socket Head (Reverse Fix)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight10.569g
Dimensions50.00 x 10.50 x 15.20
Above Board Height9.50mm
End StackableNo
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

KA1-2010498F2

 View Details
Image 1 Image 1

KA1-FSV2-4-XXXXALXX

 View Details
Image 1 Image 1

KA1-FSVA2-4-XXXXA-FVA2

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

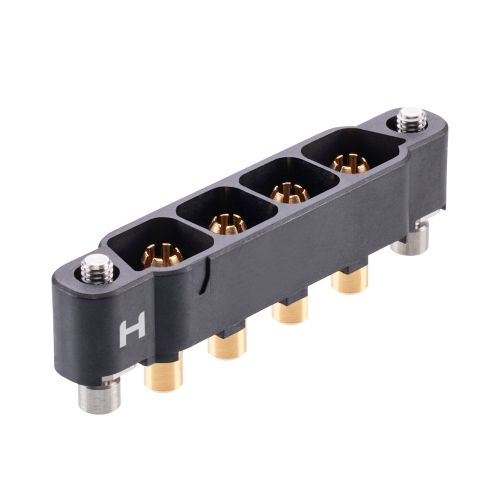

KA1-MV20405M2

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

KA1-3010498M5

View Details

KA1-MSV5-4-XXXXALXX

View Details

KA1-MSVA5-4-XXXXA-MVA5

View Details

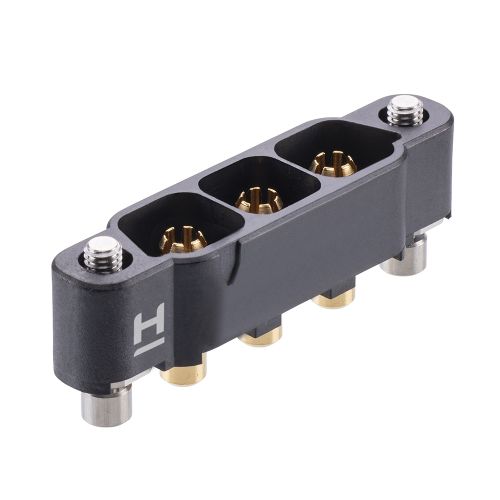

KA1-MV10305M2

View Details
