Product Images

KA1-MV20405M1

Kona (8.5mm pitch) Hi-Rel SIL Male Vertical 5.9mm Throughboard Connector, Screw-locks with 6.6mm Board Mount studs, 4 power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
10 $49.59 $495.9 Tube
100 $42.265 $4226.5 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeKona
Pitch8.50mm (0.335")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows1
Number Of Contacts4
Current Rating60A max per contact
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Screw-Lock with Board Mount Stud (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight10.61g
Dimensions50.00 x 10.50 x 16.10
Above Board Height9.50mm
End StackableNo
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

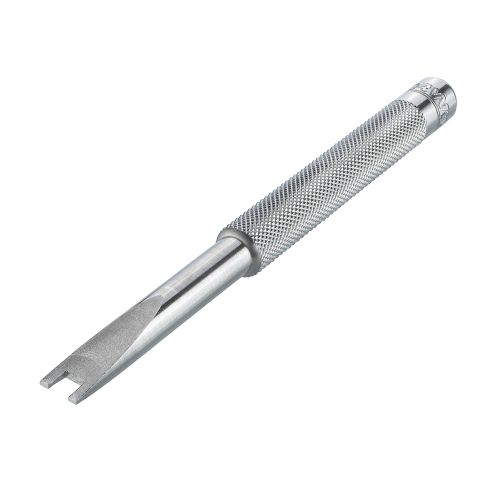

ZA1-9020000

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

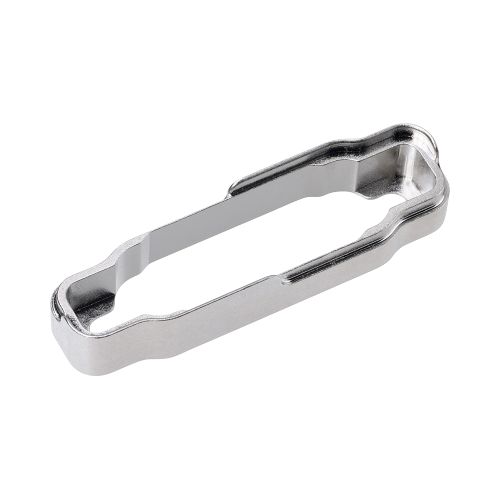

KA1-9500402

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

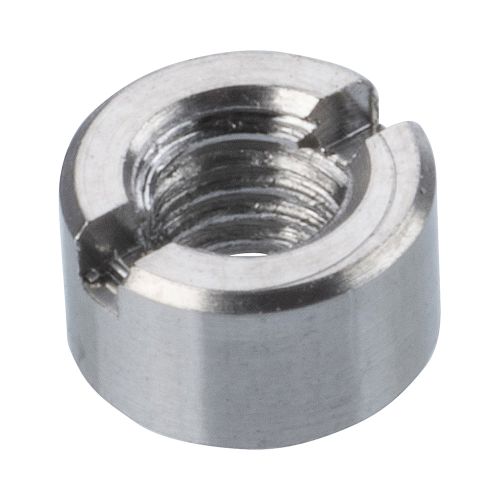

KA1-4240000

 View Details
Image 1 Image 1

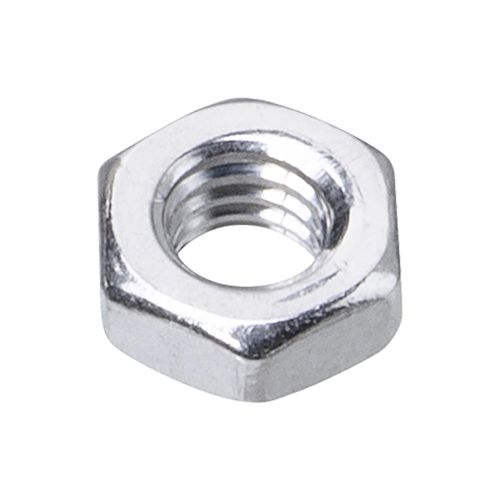

KA1-4300000

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

KA1-2010498F1

 View Details
Image 1 Image 1

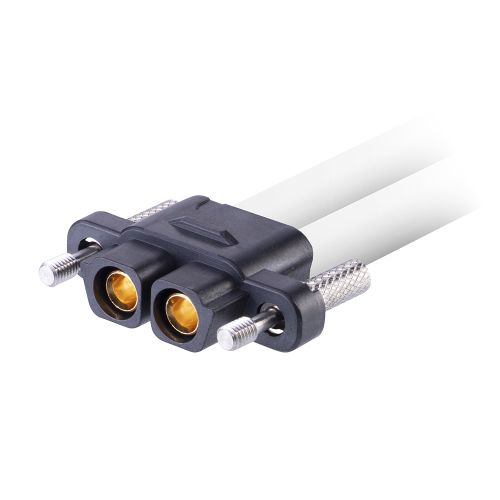

KA1-FSV1-4-XXXXALXX

 View Details
Image 1 Image 1

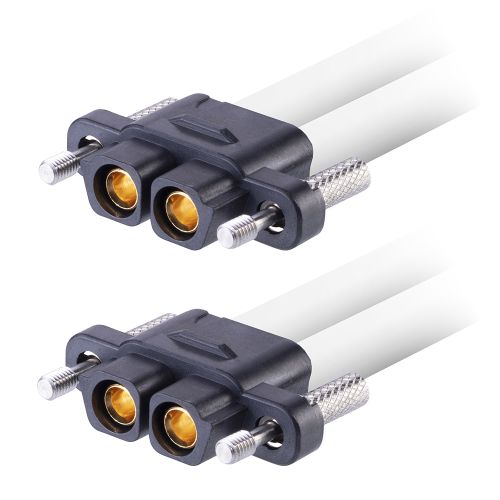

KA1-FSVA1-4-XXXXA-FVA1

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

KA1-MV10405M1

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

KA1-3010498M1

View Details

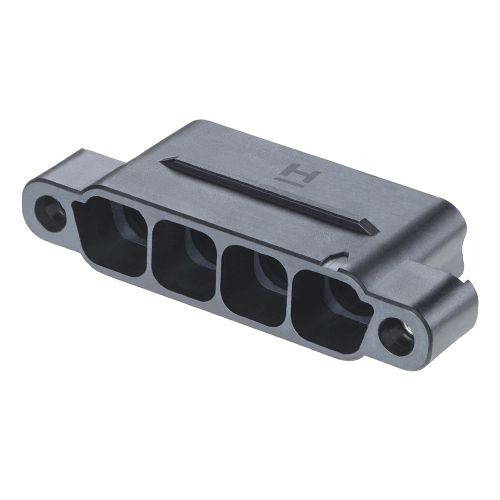

KA1-3010498M3

View Details

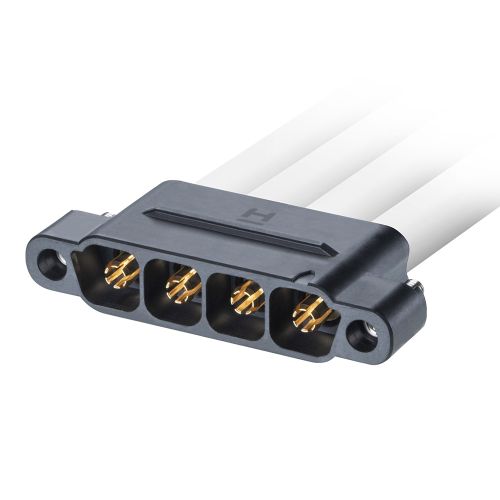

KA1-MSV1-4-XXXXALXX

View Details

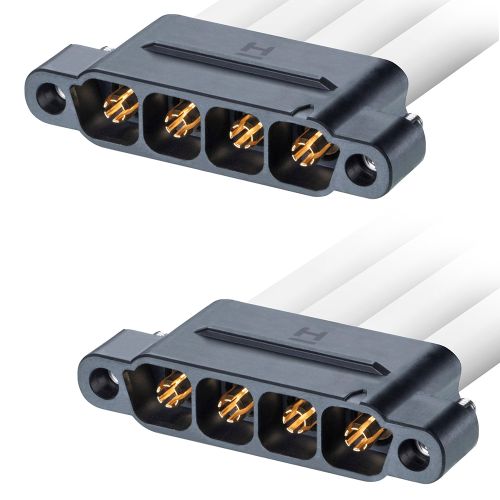

KA1-MSVA1-4-XXXXA-MVA1

View Details
