M20-1180046

2.54mm (0.1") Pitch Female Crimp Contact, tin, loose

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 100		 Quantity Unit Price Ext Price Packaging
500 $0.068 $34 Bulk/Loose
1000 $0.064 $64 Bulk/Loose
2500 $0.059 $147.5 Bulk/Loose
50000 $0.056 $2800 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch2.54mm (0.1")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size22-30 AWG
Current Rating3A per contact
Environmental Ratings-40°C to +105°C
Termination Finish100% Tin over Nickel
Weight0.085g
Dimensions11.70 x 2.30 x 2.60
Mating Pin Size0.64mm square
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

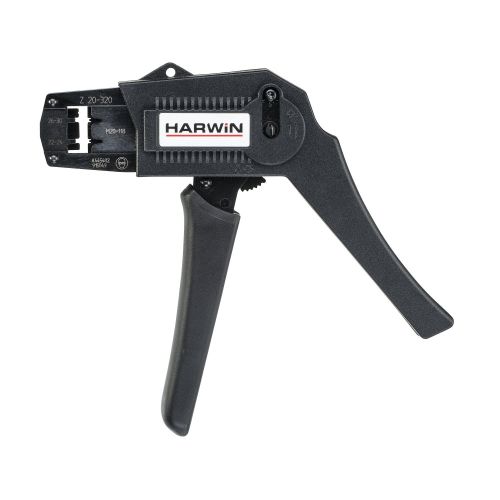

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z20-320

 View Details

Use with Housings

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M20-1061000

 View Details
Image 1 Image 1

M20-1071000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M20-1180042

 View Details
