M20-7880442

2.54mm (0.1") Pitch DIL Horizontal Throughboard Socket Assembly, selective gold + tin, 4+4 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 55		 Quantity Unit Price Ext Price Packaging
2035 $1 $2035 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch2.54mm (0.1")
GenderFemale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts8
Current Rating3A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 9T
Flammability RatingUL94V-0
Weight0.856g
Dimensions10.36 x 8.12 x 8.90
Above Board Height5.90mm
End StackableNo
Mating Pin Size0.64mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

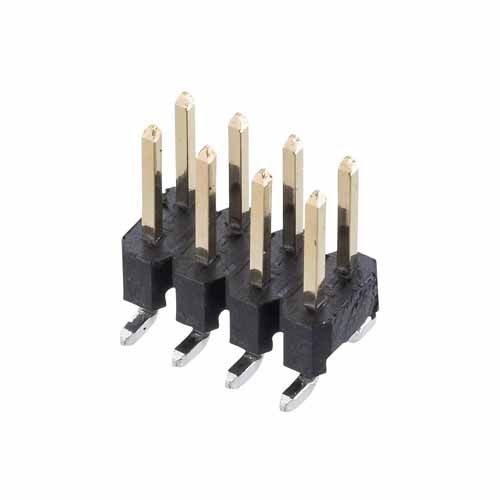

M20-8750442

 View Details
Image 1 Image 1

M20-8760442

 View Details
Image 1 Image 1

M20-9740442

 View Details
Image 1 Image 1

M20-9760442

 View Details
Image 1 Image 1

M20-9950445

 View Details
Image 1 Image 1

M20-9980445

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M20-7880446

 View Details
