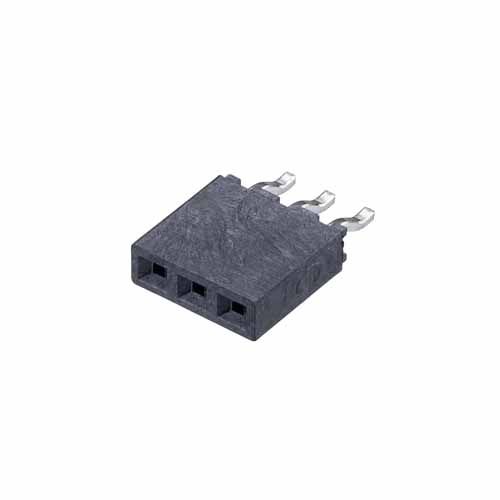

M20-7890346

2.54mm (0.1") Pitch SIL Horizontal Throughboard Socket Assembly, tin, 3 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 78
Quantity Unit Price Ext Price Packaging
1014 $0.567 $574.938 Tube
2574 $0.501 $1289.574 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch2.54mm (0.1")
GenderFemale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows1
Number Of Contacts3
Current Rating3A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 6T
Flammability RatingUL94V-0
Weight0.311g
Dimensions7.62 x 8.12 x 6.30
Above Board Height3.30mm
End StackableNo
Mating Pin Size0.64mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required
