M300-FV3104500

M300 DIL Female Throughboard Connector, no Jackscrews, 5+5 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 9		 Quantity Unit Price Ext Price Packaging
108 $14.739 $1591.812 Tube
504 $14.122 $7117.488 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeM300
Pitch3.00mm (0.118")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts10
Current Rating10A max per contact simultaneous
Environmental Ratings-65°C to +175°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleNone fitted
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight2.194g
Dimensions27.30 x 8.00 x 9.70
Above Board Height6.50mm
End StackableNo
Mating Pin SizeØ1mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M300-MV31045M1

 View Details
Image 1 Image 1

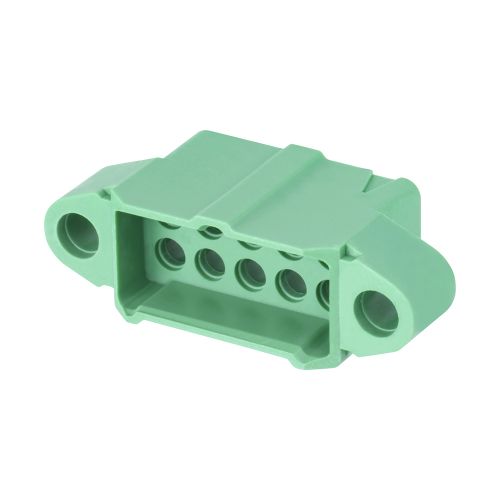

M300-3241096

 View Details
Image 1 Image 1

M300-3241096M1

 View Details
Image 1 Image 1

M300-3241096M2

 View Details
Image 1 Image 1

M300-MC11005M1-0150L

 View Details
Image 1 Image 1

M300-MC11005M1-0300L

 View Details
Image 1 Image 1

M300-MC11005M1-0450L

 View Details
Image 1 Image 1

M300-MC21005M1-0150L

 View Details
Image 1 Image 1

M300-MC21005M1-0300L

 View Details
Image 1 Image 1

M300-MC21005M1-0450L

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M300-FV31045F2

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-4000000F1-10-325-00-000

View Details

M300-MV31045M1

View Details

M300-2241096F2

View Details
