Product Images

M40-3102045R

1.00mm Pitch DIL Vertical SMT Socket Assembly, location pegs, gold, 20+20 contacts, pick & place (Tape & Reel packing)

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 2000		 Quantity Unit Price Ext Price Packaging
1000 $2.883 $2883 Tape and Reel
2000 $2.88 $5760 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch1.00mm (0.039")
GenderFemale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts40
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination FinishGold
Housing MaterialPolyamide (Nylon) 9T
Flammability RatingUL94V-0
Weight0.252g
Dimensions20.40 x 3.60 x 3.00
Above Board Height2.25mm
End StackableNo
Mating Pin Size0.3mm square
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M40-3202045R

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

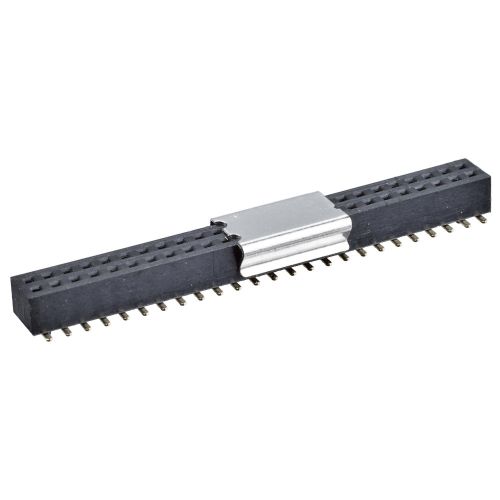

M40-3102545R

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download
