M40-6004146R

1.00mm Pitch DIL Vertical SMT Plug Assembly, location pegs, tin, 41 contacts, Tape & Reel packing

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 500		 Quantity Unit Price Ext Price Packaging
5000 $2.292 $11460 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch1.00mm (0.039")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts41
Current Rating0.5A per contact
Environmental Ratings-20°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialLCP
Flammability RatingUL94V-0
Weight0.458g
Dimensions26.10 x 5.60 x 4.10
Above Board Height3.30mm
End StackableNo
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M40-6204146R

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M40-6005146R

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M40-3202045R

View Details

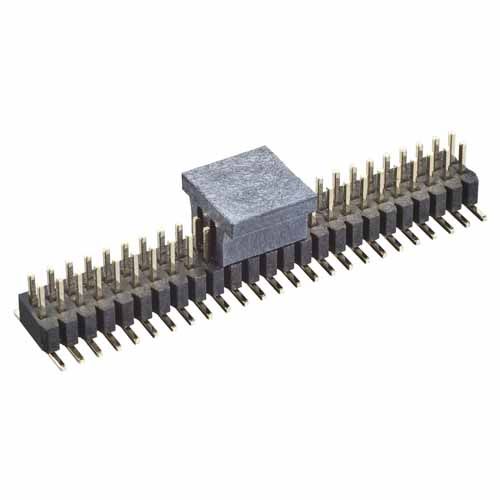

M40-3202545R

View Details

M58-3800442R

View Details
