M50-3300742

1.27mm (0.05") Pitch DIL Female IDC Ribbon Cable Connector, selective gold + tin, 7+7 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 43		 Quantity Unit Price Ext Price Packaging
1032 $1.464 $1510.848 Bulk/Loose
2537 $1.4 $3551.8 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderFemale
OrientationAngled
Connection TypeCable (Ribbon IDC)
Number Of Rows2
Number Of Contacts14
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Termination Finish100% Tin over Nickel
Housing MaterialPBT
Flammability RatingUL94V-0
Weight0.321g
Dimensions13.09 x 4.05 x 5.10
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingCable (Ribbon IDC)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z50-020

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3500742

 View Details
Image 1 Image 1

M50-3600742

 View Details
Image 1 Image 1

M50-3610742

 View Details
Image 1 Image 1

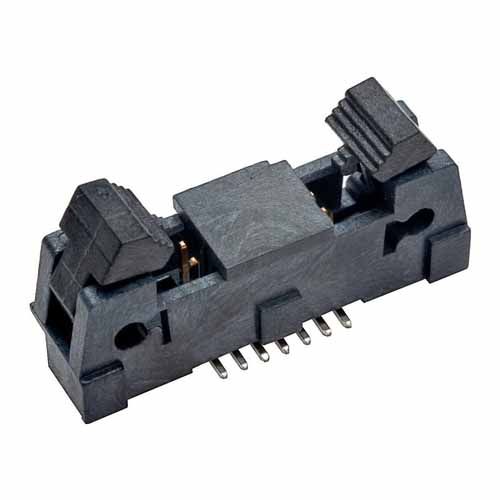

M50-3650742R

 View Details
Image 1 Image 1

M50-3800742

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3000745

 View Details
