M50-3610842

1.27mm (0.05") Pitch DIL Vertical SMT Pin Header with location pegs, selective gold + tin, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16 All prices are in USD SPQ: 500	Quantity	Unit Price	Ext Price	Packaging
	3000	$1.05	$3150	Bulk/Loose

Product Attributes

ManufacturerHarwin

PackageBulk/Loose

Product FamilyBBi

Product StatusActive

RangeARCHER

Pitch1.27mm (0.05")

GenderMale

OrientationVertical

Connection TypeSurface Mount (SMT)

Number Of Rows2

Number Of Contacts16

Current Rating1A per contact

Environmental Ratings-40°C to +105°C

Soldering DataMax Solder Temperature: 260°C for 10 seconds

Termination Finish100% Tin over Nickel

Housing MaterialPolyamide (Nylon) 6T

Flammability RatingUL94V-0

Weight0.196g

Dimensions10.16 x 5.50 x 5.50

Above Board Height4.68mm

End StackableNo

Mating Pin Size0.4mm square

Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

M50-1900005

View Details

M50-1920005

View Details

M50-1930005

View Details

M50-2000005

View Details

M50-2020005

View Details

M50-2030005

View Details

M50-3000845

View Details

M50-3100845

View Details

M50-3120845

View Details

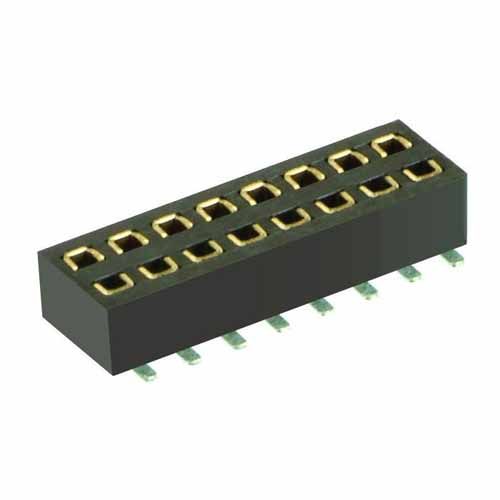

M50-3150842

View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

M50-3600842

View Details
