M50-3800642

1.27mm (0.05") Pitch DIL Male IDC Ribbon Cable Connector (DIP Transition Connector), selective gold, 6+6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 49
Quantity Unit Price Ext Price Packaging
539 $1.93 $1040.27 Tube
1029 $1.82 $1872.78 Tube
2548 $1.79 $4560.92 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationAngled
Connection TypeCable (Ribbon IDC)
Number Of Rows2
Number Of Contacts12
Current Rating0.5A per contact
Environmental Ratings-40°C to +105°C
Termination Finish100% Tin over Nickel
Housing MaterialPBT
Flammability RatingUL94V-0
Weight0.382g
Dimensions11.82 x 3.00 x 8.20
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingCable (Ribbon IDC)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Use with Mating Products

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M50-3500642

View Details

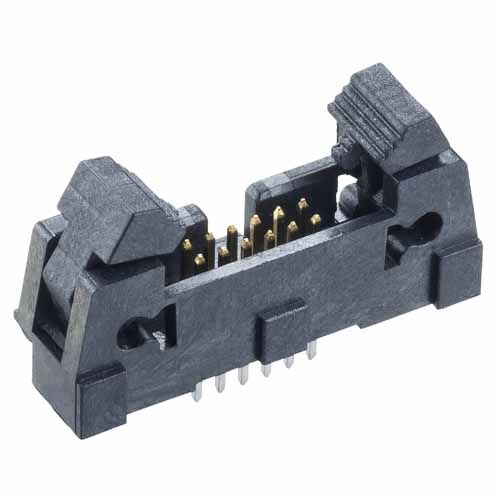

M50-3550642
