M50-4702045

1.27mm (0.05") Pitch DIL Vertical Throughboard Pin Header, single polarised, gold, 20+20 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 21		 Quantity Unit Price Ext Price Packaging
1008 $7.278 $7336.224 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination FinishGold
Housing MaterialLCP
Flammability RatingUL94V-0
Weight1.079g
Dimensions28.60 x 5.65 x 8.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

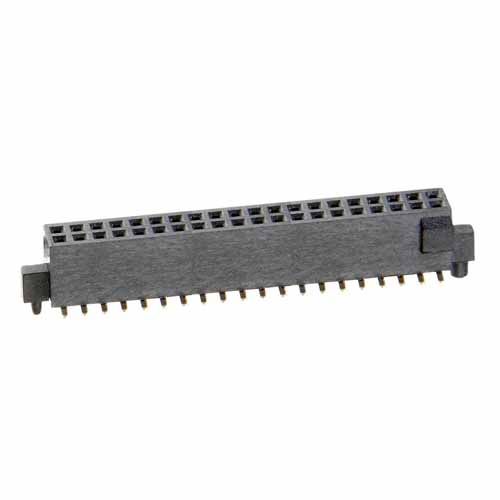

M50-4302045

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-4902045

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M50-4912045

View Details

M55-7004042R

View Details
