Product Images

M50-4801245

1.27mm (0.05") Pitch DIL Horizontal Throughboard Pin Header, single polarised, gold, 12+12 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 66		 Quantity Unit Price Ext Price Packaging
528 $2.217 $1170.576 Tube
1056 $2.08 $2196.48 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts24
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination FinishGold
Housing MaterialLCP
Flammability RatingUL94V-0
Weight0.906g
Dimensions18.44 x 7.67 x 7.75
Above Board Height5.65mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-4301245

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-4701545

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M50-3801342

View Details

M50-4901245

View Details

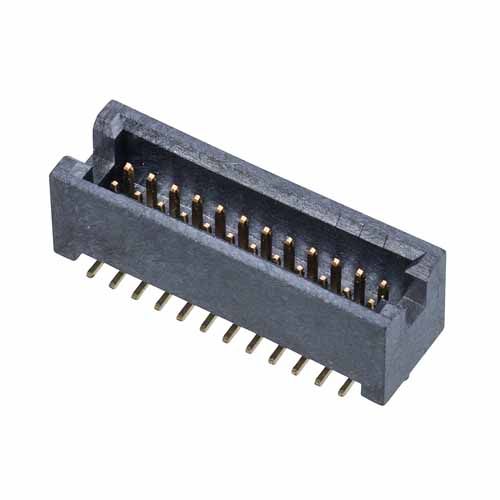

M50-4911245
