M50-4910645

1.27mm (0.05") Pitch DIL Vertical SMT Pin Header, single polarised with locating pegs, gold, 6+6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 56		 Quantity Unit Price Ext Price Packaging
1008 $1.535 $1547.28 Tube
5040 $1.53 $7711.2 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination FinishGold
Housing MaterialLCP
Flammability RatingUL94V-0
Weight0.451g
Dimensions10.82 x 6.30 x 6.90

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

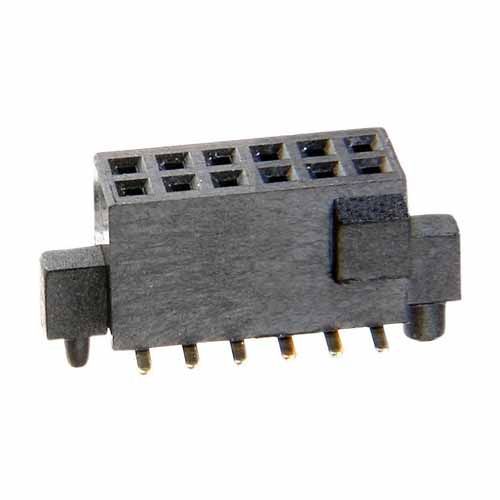

M50-4300645

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-4900745

 View Details
