M55-7102042R

Kontrol (1.27mm pitch) DIL Horizontal Header SMT high performance connector, in Tape and Reel - 20 contacts (10+10)

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 600		 Quantity Unit Price Ext Price Packaging
3000 $0.882 $2646 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeKONTROL
Pitch1.27mm (0.05")
GenderMale
OrientationHorizontal
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts20
Current Rating1.2A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialLCP
Flammability RatingUL94V-0
Weight0.76g
Dimensions17.78 x 10.00 x 4.95
Above Board Height4.20mm
End StackableNo
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

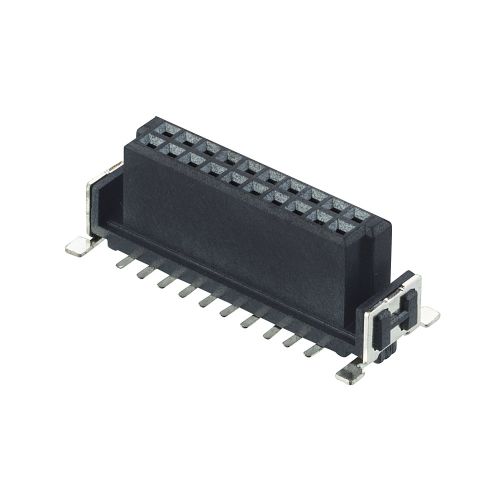

M55-6002042R

 View Details
Image 1 Image 1

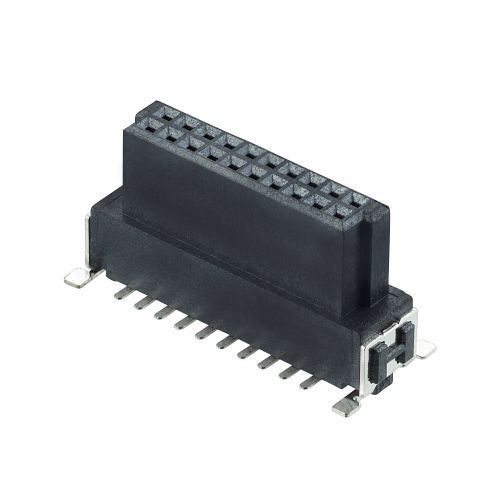

M55-6012042R

 View Details
Image 1 Image 1

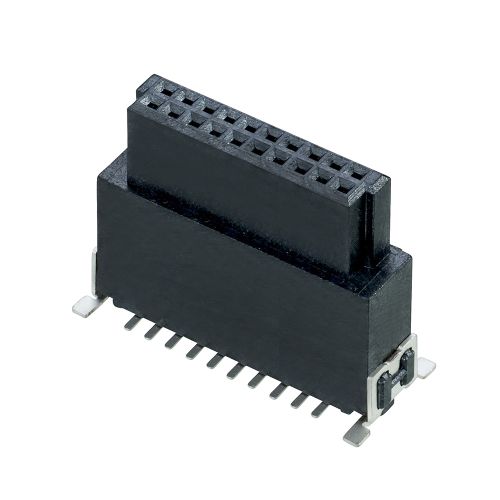

M55-6022042R

 View Details
Image 1 Image 1

M55-6102042R

 View Details
Image 1 Image 1

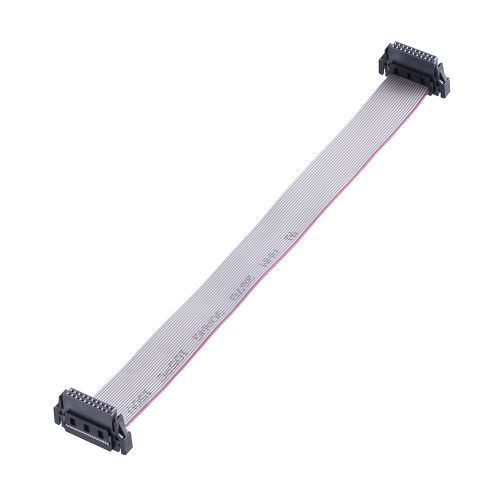

M55-8002042-0150A

 View Details
Image 1 Image 1

M55-8002042-0300A

 View Details
Image 1 Image 1

M55-8202042

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

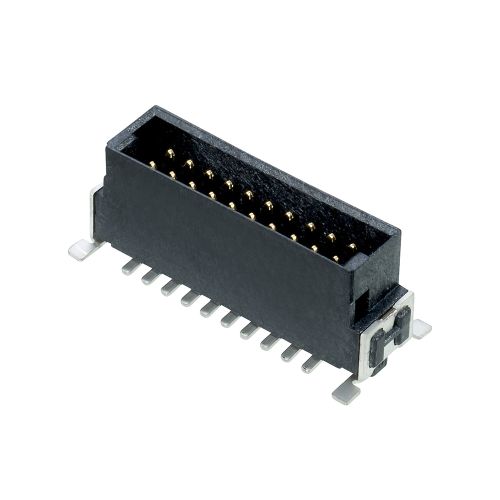

M55-7002042R

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

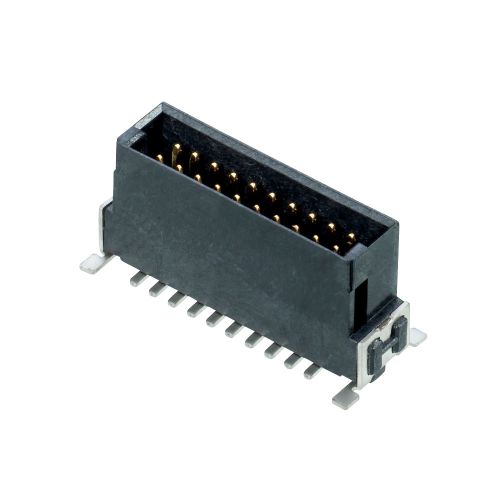

M55-7012042R

View Details

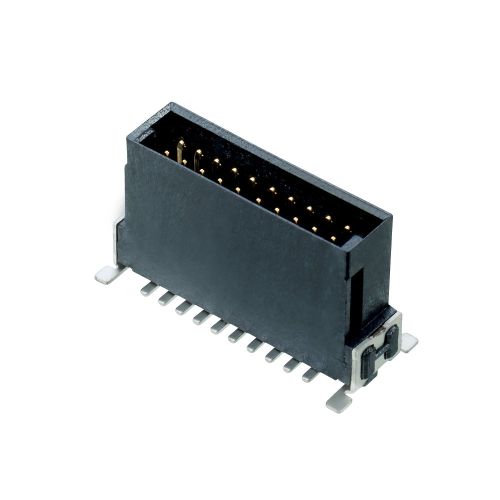

M55-7022042R

View Details
