M55-8005042-0150A

Kontrol (1.27mm pitch) DIL IDC Cable Assembly Female-to-Female high performance connector - 150mm length, 50 contacts (25+25)

Download Datasheet Request Sample
In-Stock: 7
Factory Lead Time (wks): 16
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
100 $26.713 $2671.3 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeKONTROL
Pitch1.27mm (0.05")
GenderFemale
OrientationAngled
Connection TypeCable Assembly
Wire Size30 AWG
Number Of Rows2
Number Of Contacts50
Current Rating0.5A max per contact
Environmental Ratings-20°C to +105°C
Latching StyleBuilt-in Latches
Termination Finish100% Tin over Nickel
Housing MaterialLCP (PA66 Latch Cover)
Flammability RatingUL94V-0
Weight12g
Dimensions157.75 x 40.13 x 12.20
End StackableNo
Pcb MountingCable Assembly

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M55-7005042R

 View Details
Image 1 Image 1

M55-7015042R

 View Details
Image 1 Image 1

M55-7025042R

 View Details
Image 1 Image 1

M55-7105042R

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

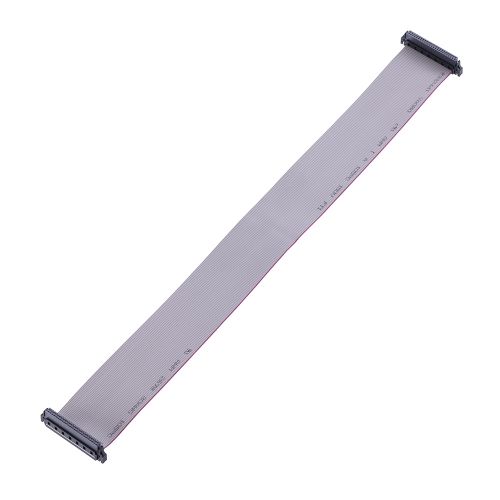

M55-8005042-0300A
