M55-8201242

Kontrol (1.27mm pitch) DIL IDC Cable Female Connector high performance connector, for 30 AWG 0.635mm pitch ribbon cable - 12 contacts (6+6)

Download Datasheet Request Sample

Factory Lead Time (wks): 22
All prices are in USD
SPQ: 1560		 Quantity Unit Price Ext Price Packaging
1560 $3.5 $5460 Tray

Product Attributes

ManufacturerHarwin
PackageTray
Product FamilyBBi
Product StatusActive
RangeKONTROL
Pitch1.27mm (0.05")
GenderFemale
OrientationAngled
Connection TypeCable (Ribbon IDC)
Wire Size30 AWG
Number Of Rows2
Number Of Contacts12
Current Rating0.5A max per contact
Environmental Ratings-20°C to +105°C
Latching StyleBuilt-in Latches
Termination Finish100% Tin over Nickel
Housing MaterialLCP (PA66 Latch Cover)
Flammability RatingUL94V-0
Weight0.86g
Dimensions16.00 x 4.70 x 14.10
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

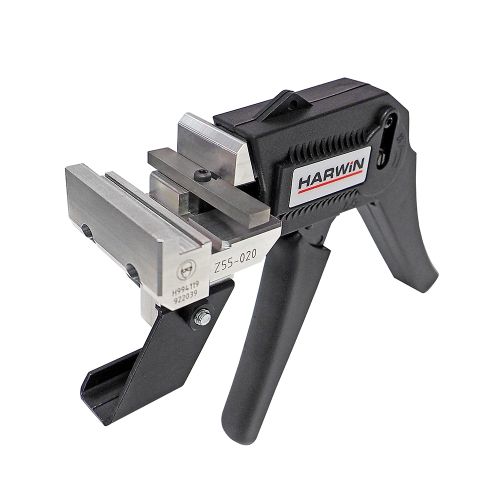

Z55-020
