M55-8206842

Kontrol (1.27mm pitch) DIL IDC Cable Female Connector high performance connector, for 30 AWG 0.635mm pitch ribbon cable - 68 contacts (34+34)

Download Datasheet Request Sample

Factory Lead Time (wks): 22
All prices are in USD
SPQ: 520		 Quantity Unit Price Ext Price Packaging
500 $6.717 $3358.5 Tray

Product Attributes

ManufacturerHarwin
PackageTray
Product FamilyBBi
Product StatusActive
RangeKONTROL
Pitch1.27mm (0.05")
GenderFemale
OrientationAngled
Connection TypeCable (Ribbon IDC)
Wire Size30 AWG
Number Of Rows2
Number Of Contacts68
Current Rating0.5A max per contact
Environmental Ratings-20°C to +105°C
Latching StyleBuilt-in Latches
Termination Finish100% Tin over Nickel
Housing MaterialLCP (PA66 Latch Cover)
Flammability RatingUL94V-0
Weight3.59g
Dimensions51.60 x 4.70 x 14.10
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z55-020

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

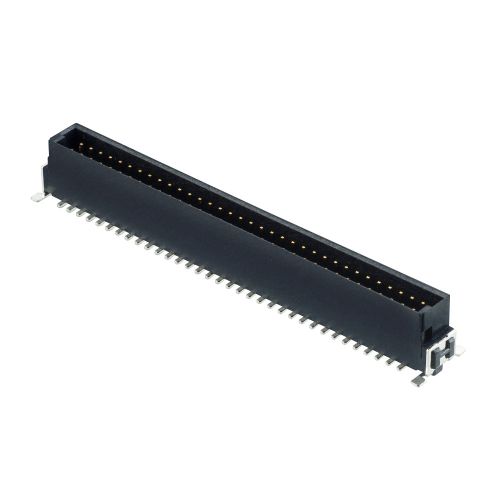

M55-7006842R

 View Details
Image 1 Image 1

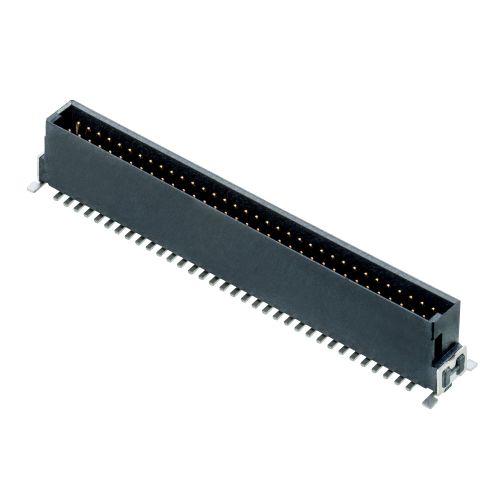

M55-7016842R

 View Details
Image 1 Image 1

M55-7026842R

 View Details
Image 1 Image 1

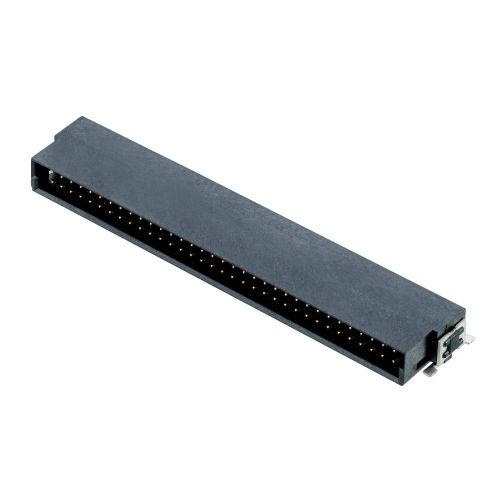

M55-7106842R

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

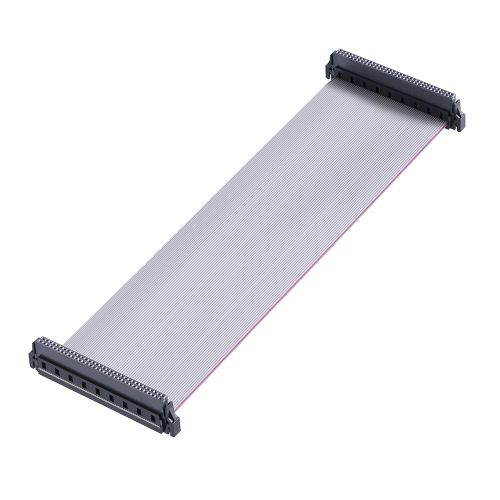

M55-8006842-0150A

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M55-6006842R

View Details

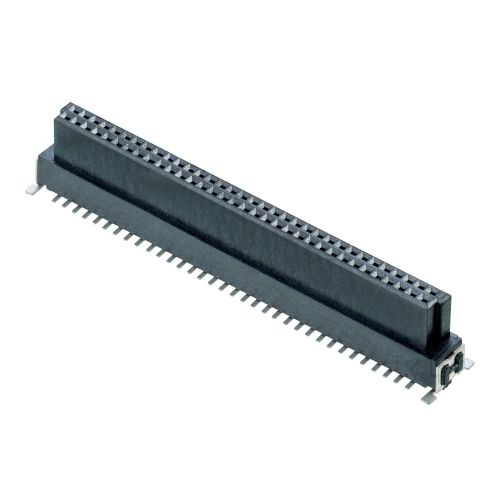

M55-6016842R

View Details

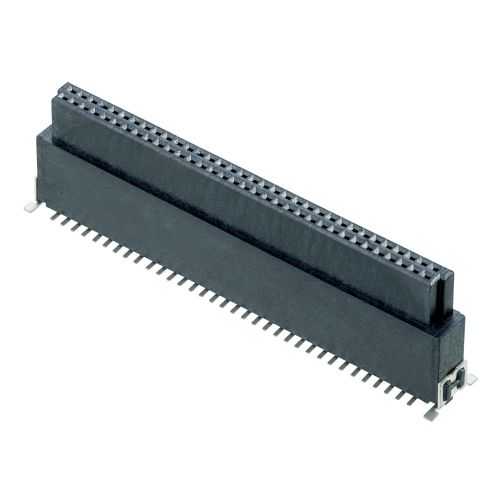

M55-6026842R

View Details

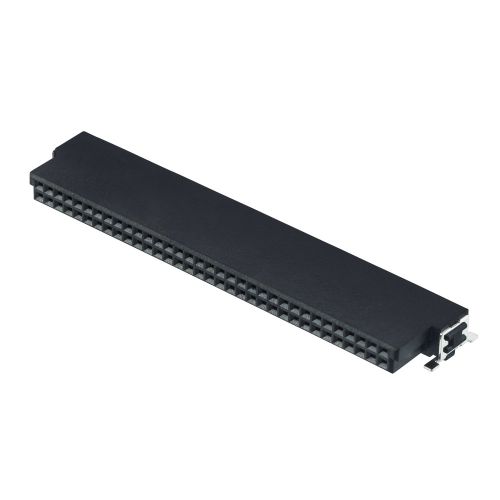

M55-6106842R
