M58-2801042R

Archer .8 (0.80mm pitch) DIL Vertical SMT Socket Assembly, location pegs, selective gold + tin, 50+50 contacts, Tape & Reel packing - data rate up to 12GHz, 24Gb/s

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 800		 Quantity Unit Price Ext Price Packaging
4000 $2.38 $9520 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch0.80mm (0.031")
GenderFemale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts100
Current Rating0.5A per contact
Environmental Ratings-40°C to +125°C
Soldering DataMax Solder Temperature: 250°C for 5 seconds
Termination Finish100% Tin over Nickel
Housing MaterialLCP
Flammability RatingUL94V-0
Weight1.149g
Dimensions45.75 x 6.00 x 4.42
Above Board Height3.70mm
End StackableNo
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M58-3801042R

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

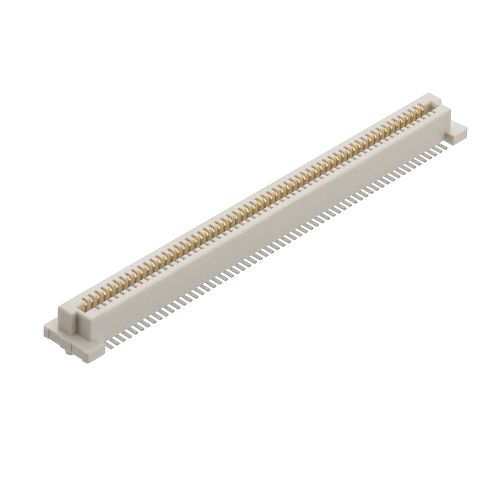

M58-2801242R

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M58-2501042R

View Details

M58-2800842R

View Details
