M58-3800842R

Archer .8 (0.80mm pitch) DIL Vertical SMT Plug Assembly, location pegs, selective gold + tin, 40+40 contacts, Tape & Reel packing - data rate up to 12GHz, 24Gb/s

Download Datasheet Request Sample

In-Stock: 5 Factory Lead Time (wks): 16 All prices are in USD SPQ: 500	Quantity	Unit Price	Ext Price	Packaging
	4800	$1.95	$9360	Tape and Reel

Product Attributes

ManufacturerHarwin

PackageTape and Reel

Product FamilyBBi

Product StatusActive

RangeARCHER

Pitch0.80mm (0.031")

GenderMale

OrientationVertical

Connection TypeSurface Mount (SMT)

Number Of Rows2

Number Of Contacts80

Current Rating0.5A per contact

Environmental Ratings-40°C to +125°C

Soldering DataMax Solder Temperature: 250°C for 5 seconds

Termination Finish100% Tin over Nickel

Housing MaterialLCP

Flammability RatingUL94V-0

Weight1.124g

Dimensions37.75 x 6.00 x 5.42

Above Board Height4.70mm

End StackableNo

Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

M58-2800842R

View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

M58-3801042R

View Details

Documents & Media

Component Spec

Download

Product Training Module

Download

Product Datasheet

Download

Web Address

Download

FMD

Download

Related Products

Following products can be suitable for the assortments.

M58-3500842R

View Details

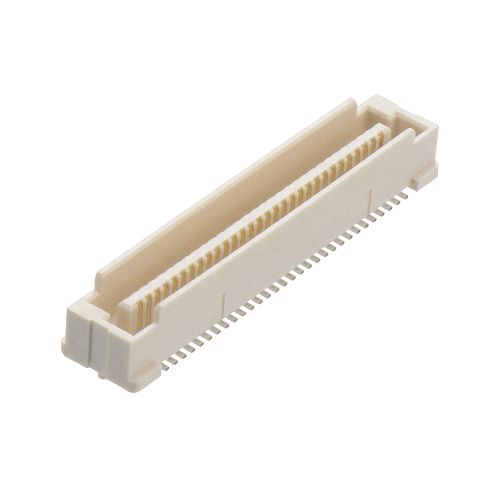

M58-3800642R
