M7582-46

2.54mm (0.1") Pitch Open Top Jumper Socket, single use, tin, Black

Download Datasheet Request Sample
In-Stock: 5000
Factory Lead Time (wks): 16
All prices are in USD
SPQ: 5000
Quantity Unit Price Ext Price Packaging
25000 $0.069 $1725 Bulk/Loose
50000 $0.065 $3250 Bulk/Loose


Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch2.54mm (0.1")
GenderFemale
OrientationVertical
Connection TypeJumper Socket
Number Of Rows1
Number Of Contacts2
Current Rating1A at 25°C
Environmental Ratings-55°C to +105°C
Housing MaterialPBT
Flammability RatingUL94V-0
Weight0.089g
Dimensions5.00 x 2.40 x 6.00
End StackableYes
Mating Pin Size0.64mm square
Pcb MountingJumper Socket

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M7567-46

View Details

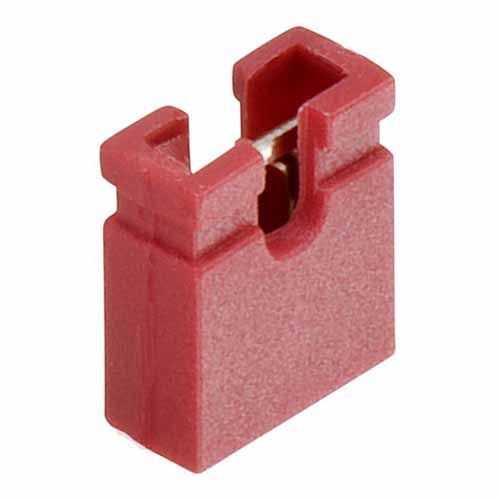

M7581-46

View Details

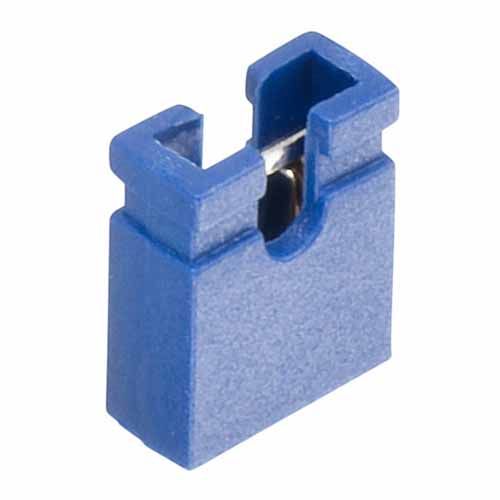

M7583-46
