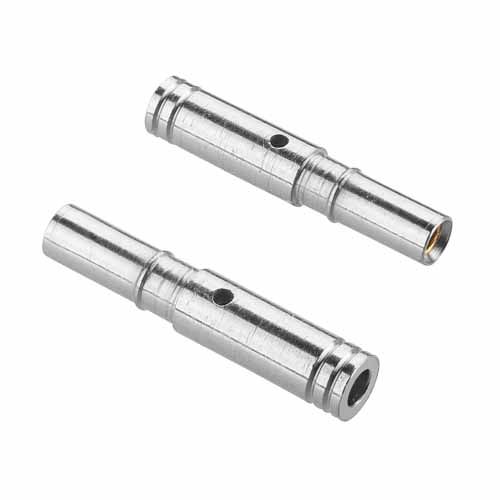

Product Images

M80-0110001

Datamate L-Tek, J-Tek Female Crimp Contact, Large Bore (22 AWG), gold clip + tin shell

Download Datasheet Request Sample

In-Stock: 29511 Factory Lead Time (wks): 16 All prices are in USD SPQ: 1000	Quantity	Unit Price	Ext Price	Packaging
	2000	$0.396	$792	Bulk/Loose
	3000	$0.36	$1080	Bulk/Loose
	10000	$0.35	$3500	Bulk/Loose

Product Attributes

ManufacturerHarwin

PackageBulk/Loose

Product FamilyHRi

Product StatusActive

RangeDatamate

Pitch2.00mm (0.079")

GenderFemale

OrientationStraight

Connection TypeCable (Crimp)

Wire Size22 AWG

Current Rating3.3A max individual contact, 3A max simultaneous (25°C)

Environmental Ratings-55°C to +125°C

Termination Finish100% Tin over Nickel

Weight0.062g

Dimensions7.45 x Ø1.46

Mating Pin SizeØ0.5mm

Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

M22520/2-01

View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

T5747

View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Z80-280

View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

M80-023

View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

M80-0110005

View Details
