M80-263F104-02-00

Datamate Mix-Tek Female Cable Housing, Hexagonal slotted floating jackscrews, cavities for 4 x Power or Coax contacts and 2 x Signal contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 21
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
20 $18.07 $361.4 Bulk/Loose
40 $16.165 $646.6 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderFemale
OrientationStraight
Connection TypeCable (Solder + Crimp)
Number Of RowsMixed
Number Of Contacts2
Current RatingDependent on assembled contacts
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Slotted Head (Standard Gender)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.284g
Dimensions28.00 x 5.50 x 9.50
End StackableNo
Pcb MountingCable (Solder + Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details
Image 1 Image 1

Z80-290

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

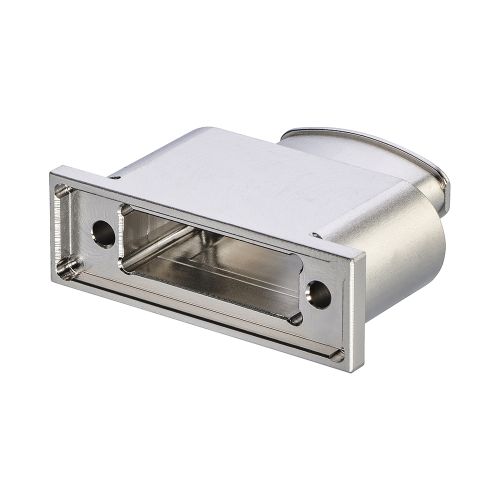

M80-9451802

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0110005

 View Details
Image 1 Image 1

M80-0130005

 View Details
Image 1 Image 1

M80-0190005

 View Details
Image 1 Image 1

M80-305

 View Details
Image 1 Image 1

M80-307

 View Details
Image 1 Image 1

M80-308

 View Details
Image 1 Image 1

M80-309

 View Details
Image 1 Image 1

M80-310

 View Details
Image 1 Image 1

M80-325

 View Details
Image 1 Image 1

M80-326

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

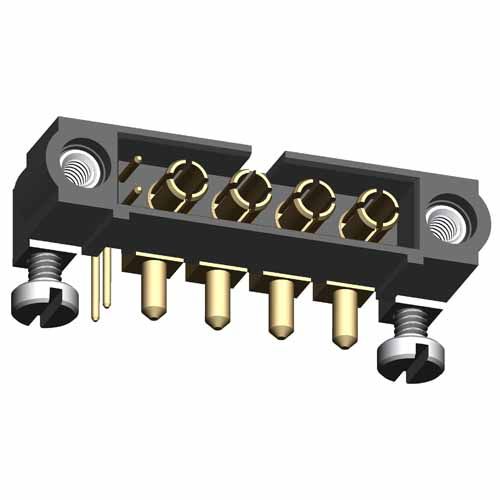

M80-5L10205M5-04-333-00-000

 View Details
Image 1 Image 1

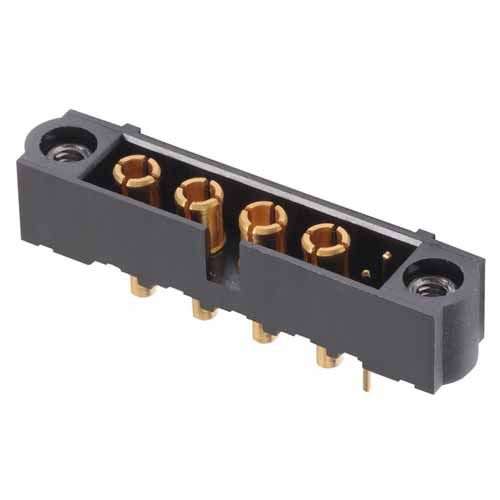

M80-5T10205M1-04-331-00-000

 View Details
Image 1 Image 1

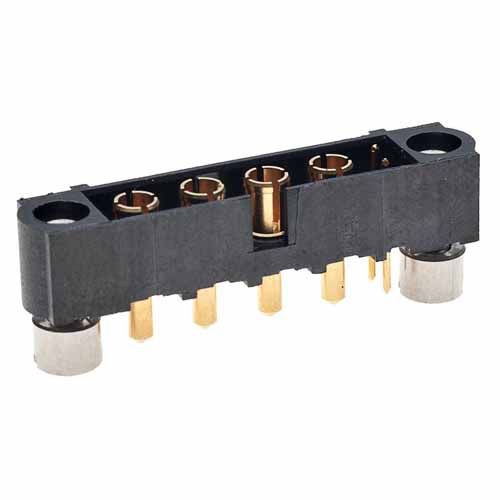

M80-5T10205M2-04-331-00-000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-263F104-00-00

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

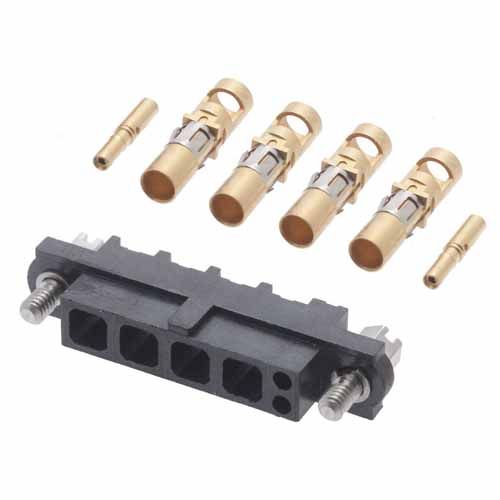

M80-4C10205F1-04-325-00-000

View Details

M80-263F104-04-00

View Details
