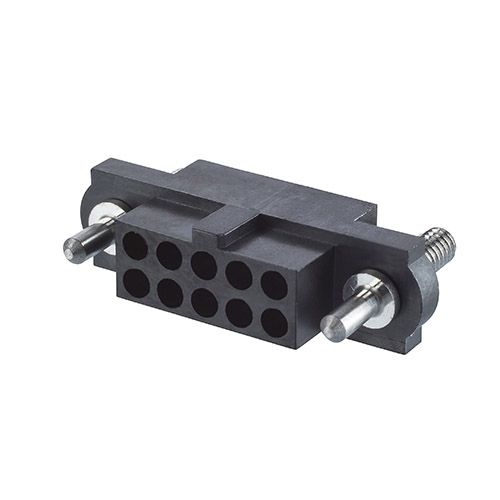

Product Images

M80-263F304-12-00

Datamate Mix-Tek Female Cable Housing, Guide Pins with 5mm front panel mount studs, cavities for 4 x Power or Coax contacts and 12 x Signal contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin

PackageBulk/Loose

Product FamilyHRi

Product StatusActive

RangeDatamate

Pitch2.00mm/4.00mm (0.079"/0.157")

GenderFemale

OrientationStraight

Connection TypeCable (Solder + Crimp)

Number Of RowsMixed

Number Of Contacts12

Current RatingDependent on assembled contacts

Environmental Ratings-55°C to +125°C

Jackscrew StyleGuide Pin with Front Panel Mount Stud (Standard Gender)

Housing MaterialPPS

Flammability RatingUL94V-0

Weight1.442g

Dimensions38.00 x 5.50 x 11.00

End StackableNo

Pcb MountingCable (Solder + Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Z80-290

View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

M80-9062802

View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

M80-2130000B

View Details

M80-2430000B

View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

M80-0110005

View Details

M80-0130005

View Details

M80-0190005

View Details

M80-305

View Details

M80-307

View Details

M80-308

View Details

M80-309

View Details

M80-310

View Details

M80-325

View Details

M80-326

View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

M80-5L11205M5-04-333-00-000

View Details

M80-5L11205M7-04-313-00-000

View Details

M80-5L11205M7-04-333-00-000

View Details

M80-5T11205M1-04-331-00-000

View Details

M80-5T11205M2-04-331-00-000

View Details

M80-5T11205M3-04-311-00-000

View Details

M80-5T11205M3-04-331-00-000

View Details

M80-5T11242M3-04-331-00-000

View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

M80-263F104-12-00

View Details
