M80-4000000F1-03-309-00-000

Datamate Mix-Tek Female Cable Connector, Hexagonal slotted jackscrews, no signal contacts, 3 x Ø2.7mm 90 degree Crimp Coax contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderFemale
OrientationAngled
Connection TypeCable (Crimp)
Wire SizeØ2.7mm (RG174, RG179, RG316)
Current Rating0.5A per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Slotted Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.78g
Dimensions22.00 x 9.70 x 10.50 max

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-293

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-290

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-309

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5000000M2-03-311-00-000

 View Details
Image 1 Image 1

M80-5000000M5-03-313-00-000

 View Details
Image 1 Image 1

M80-273M103-00-00

 View Details
Image 1 Image 1

M80-273MU03-00-00

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

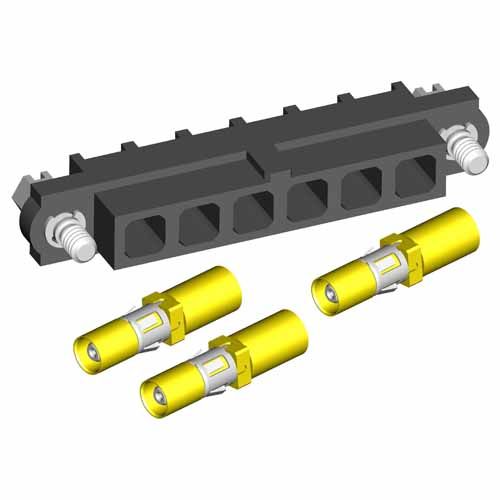

M80-4000000F1-03-307-03-000

 View Details
