M80-4000000F1-07-327-00-000

Datamate Mix-Tek Female Cable Connector, Hexagonal slotted jackscrews, no signal contacts, 7 x 16 AWG Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin

PackageSingle Pack

Product FamilyHRi

Product StatusActive

RangeDatamate

Pitch4.00mm (0.157")

GenderFemale

OrientationStraight

Connection TypeCable (Solder)

Wire Size16 AWG

Current Rating10A max per contact

Environmental Ratings-55°C to +125°C

Jackscrew StyleFloating Jackscrew with Hex Slotted Head (Standard Gender)

Termination FinishGold

Housing MaterialPPS

Flammability RatingUL94V-0

Weight4.61g

Dimensions38.00 x 5.50 x 13.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Z80-290

View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

M80-9452802

View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

M80-327

View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

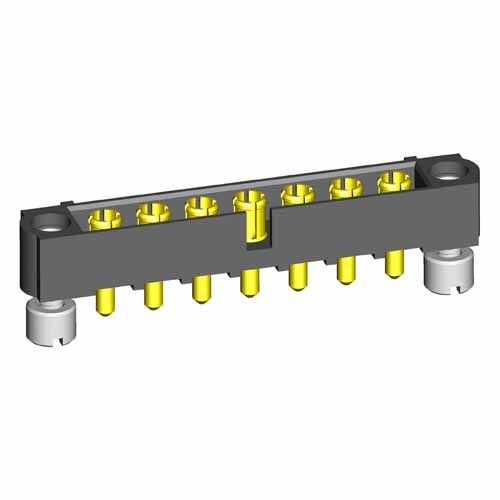

M80-5000000M2-07-331-00-000

View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

M80-4000000F1-08-327-00-000

View Details
